Chapter 3.1
Risk estimation assesses hazards before and after safety measures are implemented. However, standards focus on meeting safety requirements directly, without repeated assessments. Below we guide you in how to estimate and potentially reduce risks in your operation.
Many engineers when talking about risk assessment primarily think of the so called “risk estimation”, determining the seriousness of a hazard situation. They wish to estimate the risk first without protective measures and then a second time after implementing them.
But is that really necessary? The simple answer is no.
Applicable standards do not mandate a risk-in/risk-out analysis, which evaluates the risk before (risk-in) and after (risk-out) safety measures are applied. This approach is unnecessary, especially when the primary goal of risk estimation is determining the Performance Level (PL) or Safety Integrity Level (SIL) for control functions. In such cases, assessing the residual risk (risk-out) is irrelevant since the focus is on ensuring the control function meets the required safety performance criteria. For more practical guidance on this topic, go to chapter 3.2 “Selecting machine guards”, which outlines effective methods for safeguarding machinery.

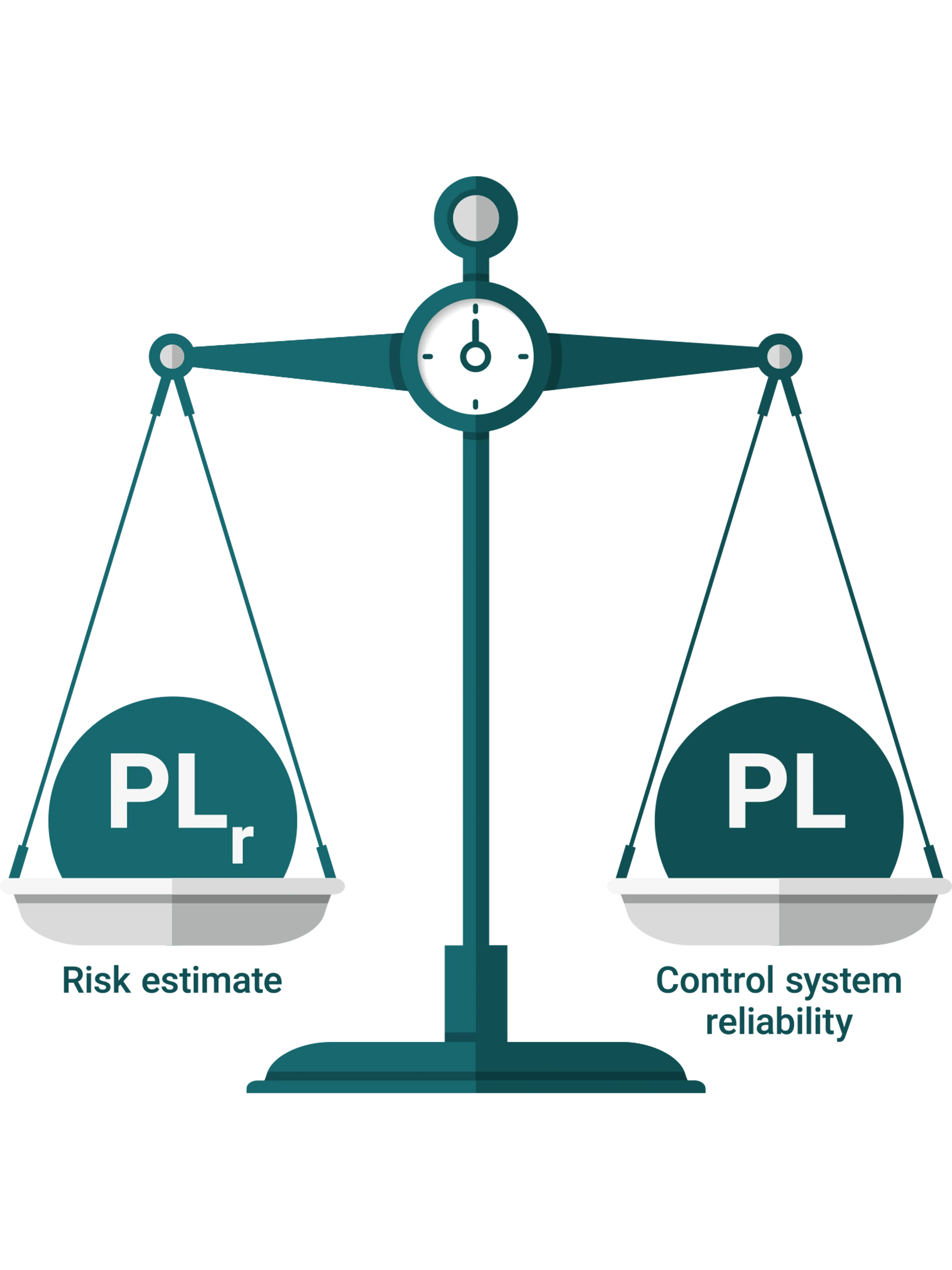

Imagine a set of balance scales. On one side, put the result of the risk estimation, the PLr or SILcl. PLr defines the required reliability of the control circuit. On the other side of the scale, put a control system function that is sufficiently reliable, reaching the required PL/SIL. The balance scales are now balanced, and the requirements are met. Thus, there is no need for an additional risk-out estimate.
But what if you still want to do risk comparisons (risk-in/risk-out estimation) or if your end customer requires them?
The method portrayed in (EN) ISO 13849-1 is not really suitable for this purpose. The reason is that it has only two levels for each risk element. To compare risk before and after implementation of measures you will need a method with a higher resolution.
The chart below shows the criteria presented in (EN) IEC 62061. It is the best documented risk estimation method with the finest resolution and therefore recommended by Axelent.
This method has four severity levels, five frequency and five probability levels as well as three avoidance levels. Thus one can clearly see
differences between risk-in and risk-out.
However, be careful to reduce the correct risk element in the risk-out estimate. In most applications, protective measures will not change the severity of possible injury. That would only be possible by reducing the operating forces, which typically cannot be changed while maintaining desired function or efficiency. In most cases, the only change is in the probability of the hazard occurring.
Regulations and standards clearly outline three steps and require that they are always followed.
However, fixed guards may often get in the way when people want to set the machine, resolve errors, or do maintenance work.
An Axelent guard fence is a typical example. You can also look at the problem from the other side of the fence: The guard shall keep the hazard from reaching people.
However, guards are often in the way when people want to set the machine, resolve errors or do maintenance work.
This helps us to understand the two primary selection criteria for machine guards:
No access needed
Rarely: Less than once a week - removable fixed guard.
Often: Daily or even several times an hour - movable guard like a door with interlocking
