Chapter 2.1

Risk Assessment

Risk assessment or its documentation are often overlooked or missing which can cause problems when costumers or authorities ask to see the conformity documents. Some companies even regard this type of work and process as unnecessary work and a waste of time, so why is it important to have this documentation complete and ready to use?

Why should you do risk assessment?

The top three reasons to complete a risk assessment:

In most countries it is required by law to conduct a risk assessment. In the EU, the Machinery Directive 2006/42/EC and the Machinery Regulation 2023/1230 require it.
To be able to effectively design safety solutions tailored to workplace needs.
We all want to avoid learning the hard way: through accidents which may cause injury to people and incur liability for the manufacture

The key faults in risk assessment are the following:

It is not completed in a structured way making it needlessly cumbersome.
With new machinery it is done too late when the design is already mostly completed. This can make it extra challenging, time consuming, and potentially more expensive to implement sufficient safety measures.

How to conduct a risk assessment by following a task-based approach

Follow the task-based approach, a requirement of (EN) ISO 12100.

Step 1 of 2

Follow a targeted, uncomplicated approach

Identify the relevant phases of life
The relevant phases of the machine’s life (the so-called phases of life) are the different steps in the implementation and operation of a machine or process. These include for example transport, installation, regular operation, maintenance and troubleshooting.
Define operations and tasks
An "operation" is an automatic process inside the machine. A "task" is an action taken by an operator. Typical operations and tasks in the operation phase for instance are: insert work piece (manually), start process, punch/mill/ grind/weld automatically, remove finished part from machine.
Identify hazards
Look for the hazards in each operation and task defined. For instance, punching automatically in a press can cause crushing, shearing and noise issues. To standardize risk estimation across operations and tasks, you should use a method such as the one detailed in the chart.
Estimate risk
Crushing in a press can cost a hand or arm. Large presses can kill a person. As a part of the workflow, parts or material must be inserted during each cycle, which causes the hazard to occur frequently. Since presses move fast, employees seldom have the chance to escape the hazard and are easily injured.
Select a safety measure to implement
Detail this measure like in the example chart. Find examples of safety measures under chapter 3.6 "Safety Switches and chapter 3.7 “Selection and design of monitoring systems.
Check directives/standards
Check how the measure is to be designed. This last step is the most difficult, as it involves researching standards. You can find more information about this under chapter 2.2 “Researching standards”.

Task-based risk assesment

Step 2 of 2

It is important to conduct the risk assessment well in advance before the machine is completed.

Conduct the risk assessment in good time
Performing the risk assessment while the product is still “on paper" can help you detect hazards at an early stage. Although the very early design stages might be too soon, once you have a clear idea of how the machine will function and what moving parts are required, it's time to begin. The later you assess the risk, the more challenging, time-consuming, and less effective it will be.

Starting early will also help you avoid two common consequences of faulty risk assessment:

Costly, late design changes to accommodate sufficient safety features.
Delays to final commissioning and operational use.

Although starting early is the best practice it is never too late to perform a risk assessment. It is vitally important that it is carried out, even if that results in the need for changes in the safety measures.

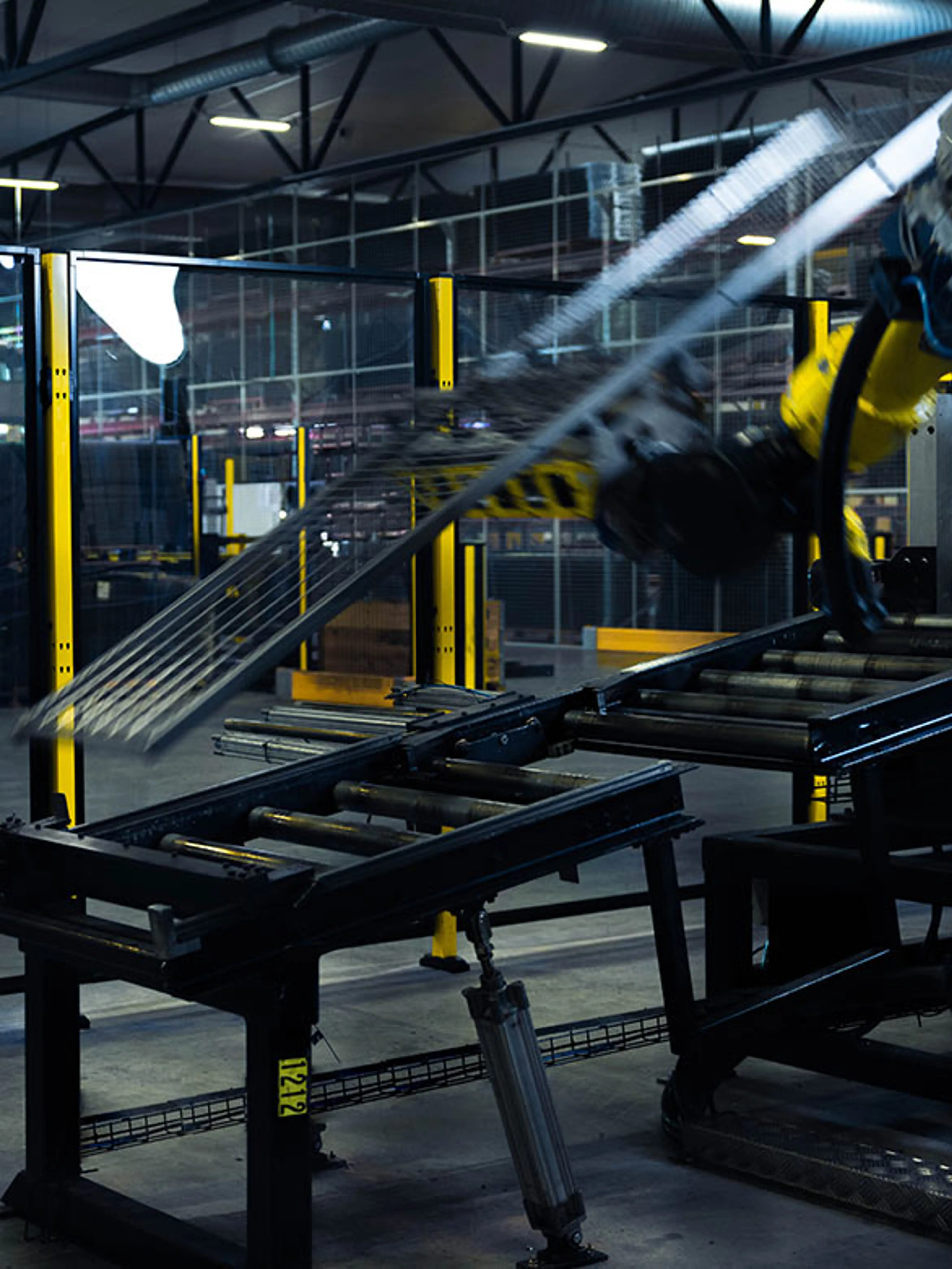

Follow a live risk assessment now

Define task to be assessed

Task:

Operator brings pallet into the machine and checks it.

Find the hazards and describe the hazardous event

Hazard

Approach of a moving element to a fixed part:

Crushing, shearing
Impact

Hazardous event

Operator may be crushed between moving robot and pallet or machine parts.

Select a safety measure

Type of measure:

Combination of guards and protective devices (llc).

The hazard zone is enclosed by a guard fence that prevents intentional and unintentional access.
A door is provided for access, which serves as a movable guard.
The movable guard is provided with interlocking and guard locking that holds the door closed until robot and machine movements in the hazard zone have stopped.
The machine cannot start as long as the door is still open or not locked.
The door switch must be provided with an escape release lock.

Allocate requirements from directives/standards

Machinery directive:

1.3.7 – Risk related to moving parts
1.4.2.1 – Fixed guards
1.4.2.2 – Interlocking movable guards

EN ISO 12100: 2010: sections 6.3.3.2.2 and 6.3.3.2.3

Do a risk estimation to find the PL for the interlocking function

S – Severity of injury: 2

Operator could be seriously injured by the robot, fatal injury possible.

F – Frequency and duration: 1

The pallet must be replaced approximately once per hour.

P – Prevention of harm: 2

The robot moves at speeds of up to 10 m/s, avoidance hardly possible.

O – Probability of occurrence: 2

No evidence available.

PLr: d

Download the full risk assessment

The most important parts of a risk assessment

Risk assessments are useful for several other processes, including development, manufacturing, testing and aftersales. The following is a list put together by Axelent containing the most important information to be included in a risk assessment report and the subsequent tasks depending on this information:

Information on directives and standards applied

Drafting of declaration of conformity, or declaration of incorporation.

Description of limits of machinery

Drafting of “Safety Notes” in operating instructions.

List of the phases of life, the operations and tasks

Design of control system operating modesand procedures. Structuring of operating instructions.

Axelent Safety Book Guards And Safety Devices

Description of guards and safety devices

Drafting of acceptance checklist for test field. Design of warning signs on the machine. Drafting list of protection measures in operating instructions. Drafting warning messages in operating instructions.

5 Byt Ut Denna Mot Bollards Bilden 576X576

Description of control system safety functions

Design of safety-related parts of control system.

Join safety expert Matthias Schulz in this webinar on risk assessment. Learn practical strategies and expert insights to identify, analyze, and mitigate risks effectively. Important information for those aiming to enhance workplace safety and compliance. The webinar starts at the 2:00 minute mark.
