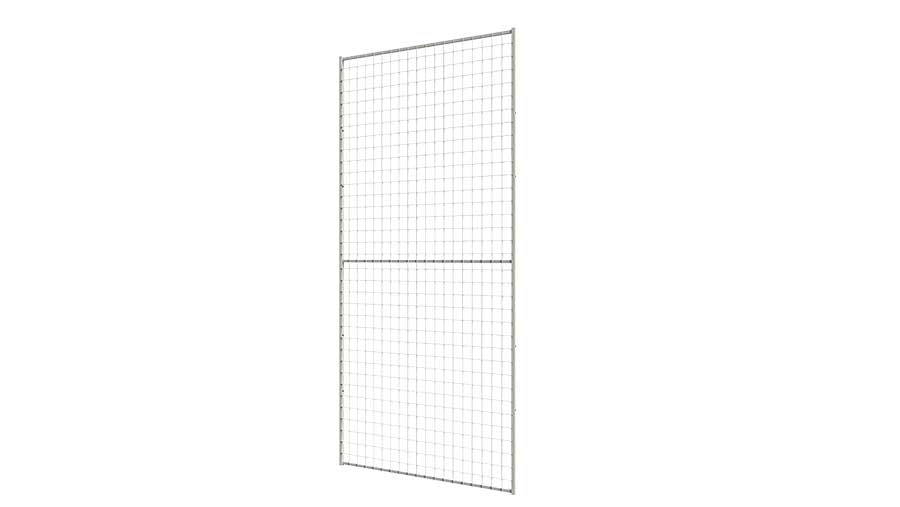

Mesh panels

The panels are available in three heights and in six widths. Using feet, posts and extenders you can tailor your industry or storage panels to suit your needs.  The standard panel colour is RAL 9018 (papyrus white). We can also supply panels after customers requirements.

Get your quote now

Name *

Phone

State *

Email *

Subject *

Message *

I have taken note of Axelent's data protection policy, which you can read here.

I agree that Axelent will process my personal information to contact me.

Design safety solutions

Design your safety solutions in our drawing tool, Safety Design

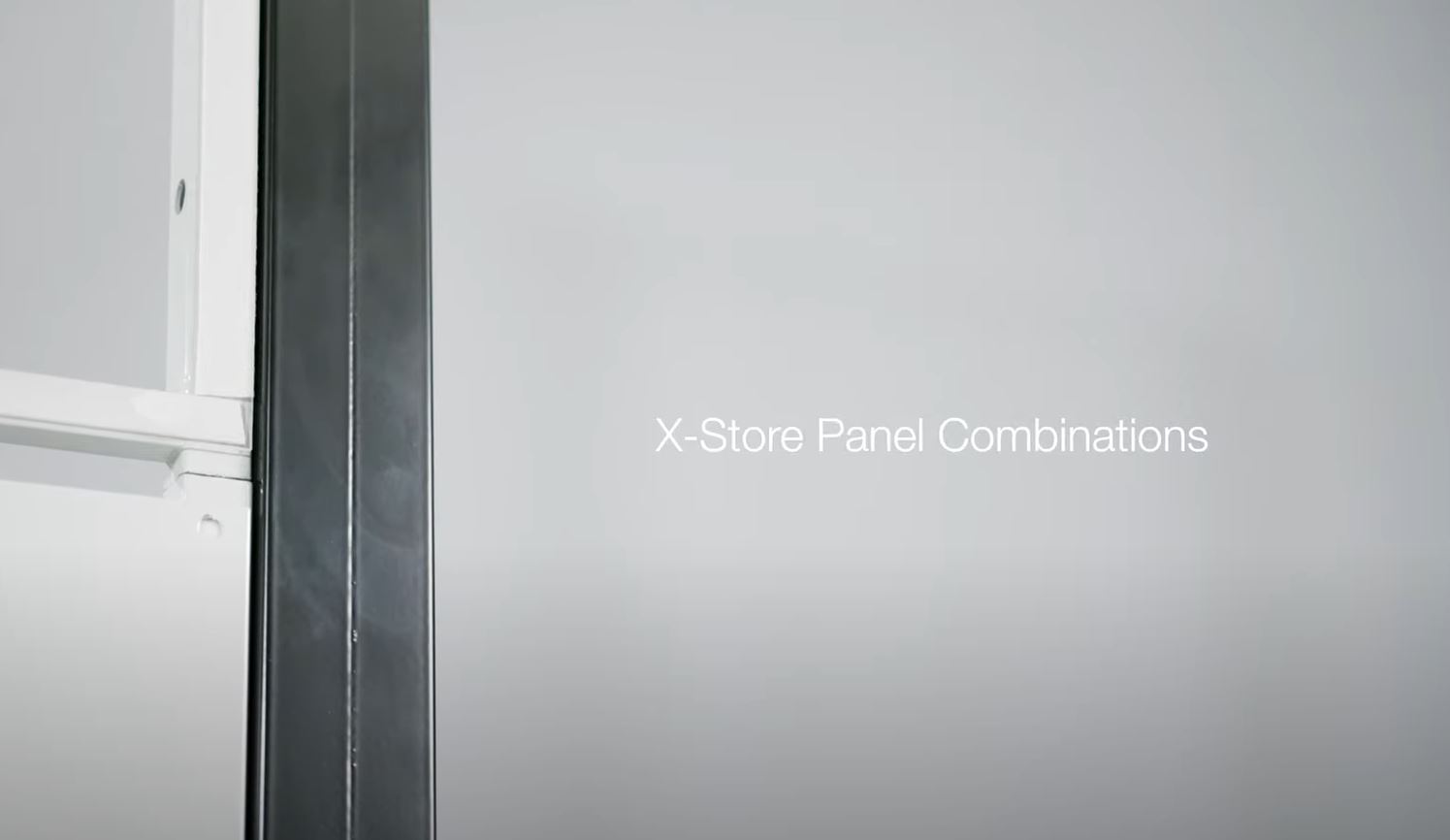

axelent assembly instructions x-store panel combinations

Select CAD Format

1/3

2/3

3/3

Models

Height 750 mm

6 Articles

Article	Width (mm)	Height (mm)	Mesh Aperture
413-075025	250	750	50x60
413-075040	400	750	50x60
413-075080	800	750	50x60
413-075100	1000	750	50x60
413-075120	1200	750	50x60
413-075150	1500	750	50x60

View more View less

Height 1100 mm

6 Articles

Article	Width (mm)	Height (mm)	Mesh Aperture
413-110025	250	1100	50x60
413-110040	400	1100	50x60
413-110080	800	1100	50x60
413-110100	1000	1100	50x60
413-110120	1200	1100	50x60
413-110150	1500	1100	50x60

View more View less

Height 2200 mm

6 Articles

Article	Width (mm)	Height (mm)	Mesh Aperture
413-220025	250	2200	50x60
413-220040	400	2200	50x60
413-220080	800	2200	50x60
413-220100	1000	2200	50x60
413-220120	1200	2200	50x60
413-220150	1500	2200	50x60

View more View less

Downloads

X-Store 2.0 | Warehouse

Brochure

X-Store 2.0 | Warehouse

Assembly instruction

Product information

The panels are available in three heights and in six widths. Using feet, posts and extenders you can tailor your industry or storage panels to suit your needs.

The standard panel colour is RAL 9018 (papyrus white). We can also supply panels after customers requirements.

Vertical tubing	19x19
Horizontal tubing	15x15
Posts	50x50, 70x70 or floor fitting
Vertical wires	Ø 3 mm
Horizontal wires	Ø 2,5 mm
Mesh aperture	50x60 mm
Finish	Phosphate/Epoxy paint
Colour, mesh panels	Papyrus white, RAL 9018
Colour, post	Graphite black, RAL 9011
	(Other colours can be quoted)

View more View less
