X-Rail Fall Protection height 2300 mm

Height 2300 mm with panel

3D

Our X-Rail fall protection system can be used as an edge protection for mezzanine floors. The system is a modification of our X-Guard range and therefore the system can fill dual purposes, mezzanine protection and machine guarding.

Get your quote now
Design safety solutions

Design your safety solutions in our drawing tool, Safety Design

Models

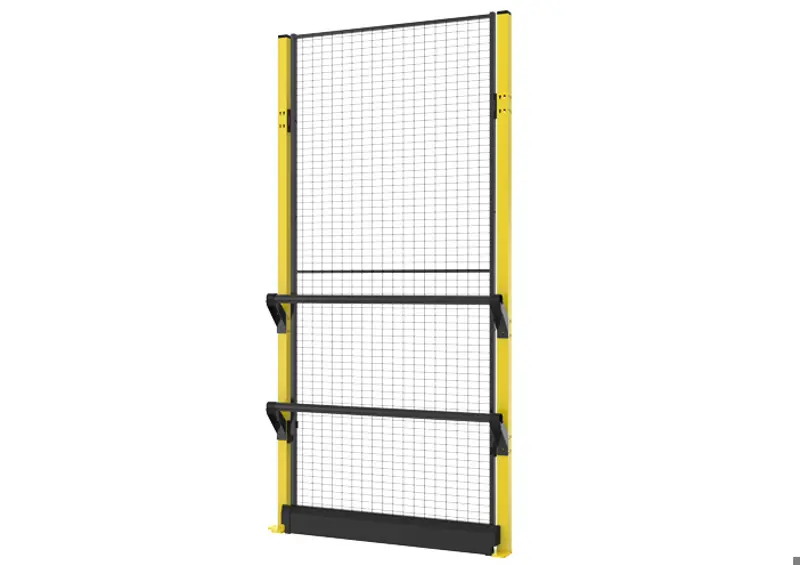

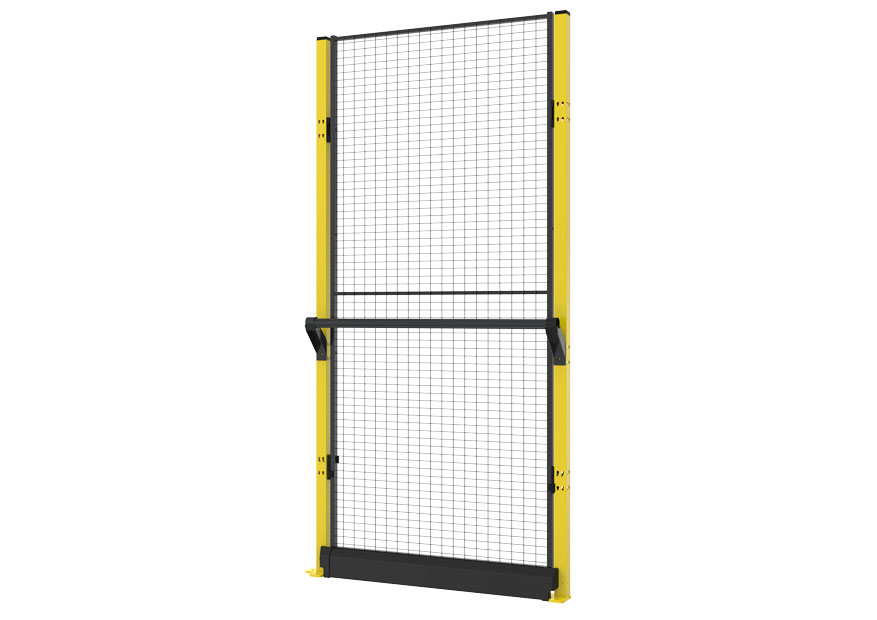

  • Mesh panels

    13 Articles
    CAD Article Width (mm) Height (mm) Color
    W322-220025 250 2200 Graphite Black (RAL 9011)
    W322-220040 400 2200 Graphite Black (RAL 9011)
    W322-220050 500 2200 Graphite Black (RAL 9011)
    W322-220060 600 2200 Graphite Black (RAL 9011)
    W322-220070 700 2200 Graphite Black (RAL 9011)
    W322-220080 800 2200 Graphite Black (RAL 9011)
    W322-220090 900 2200 Graphite Black (RAL 9011)
    W322-220100 1000 2200 Graphite Black (RAL 9011)
    W322-220110 1100 2200 Graphite Black (RAL 9011)
    W322-220120 1200 2200 Graphite Black (RAL 9011)
    W322-220130 1300 2200 Graphite Black (RAL 9011)
    W322-220140 1400 2200 Graphite Black (RAL 9011)
    W322-220150 1500 2200 Graphite Black (RAL 9011)

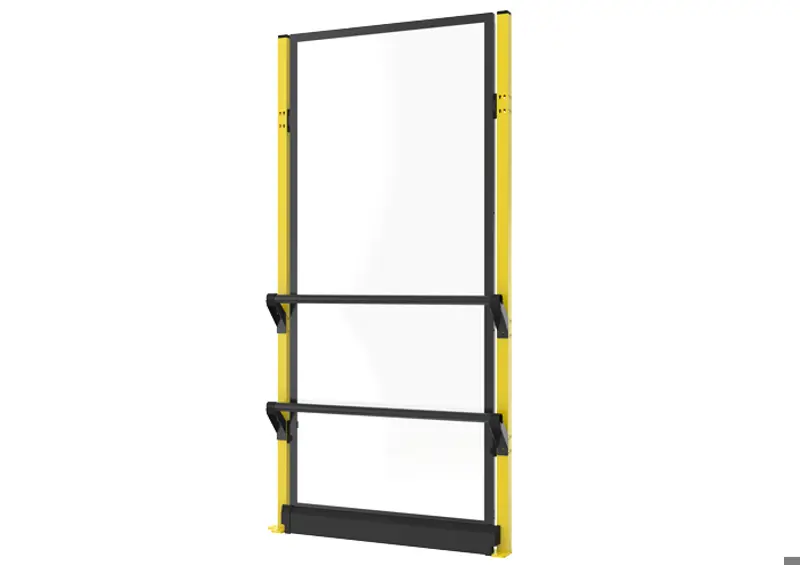

  • Plastic panels

    6 Articles
    CAD Article Width (mm) Height (mm)
    W348-220150 1500 2200
    W348-220120 1200 2200
    W348-220100 1000 2200
    W348-220080 800 2200
    W348-220040 400 2200
    W348-220025 250 2200

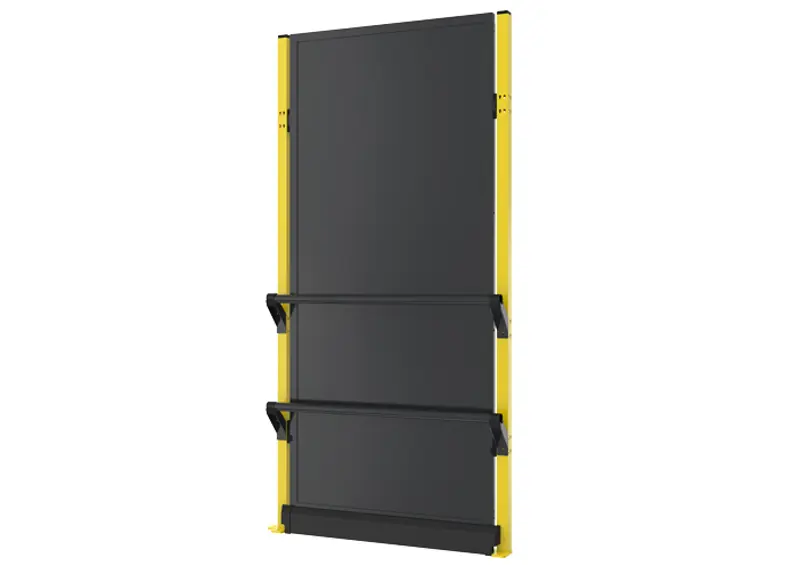

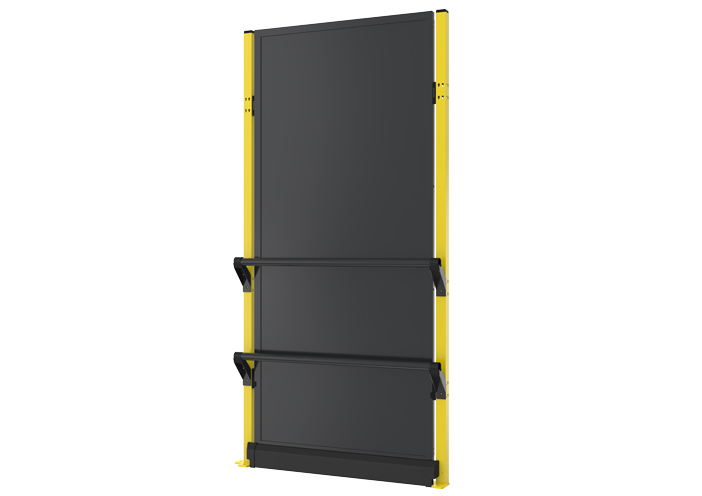

  • Sheet panels

    5 Articles
    CAD Article Width (mm) Height (mm) Color
    W349-220025 250 2200 Graphite Black (RAL 9011)
    W349-220040 400 2200 Graphite Black (RAL 9011)
    W349-220080 800 2200 Graphite Black (RAL 9011)
    W349-220100 1000 2200 Graphite Black (RAL 9011)
    W349-220120 1200 2200 Graphite Black (RAL 9011)
  • Posts 50x50mm

    1 Articles
    CAD Article Height (mm) Color
    P1170-230 2300 Zinc Yellow (RAL 1018)
    1

Downloads

X-Rail Anchor Bolt

Assembly instruction

List of fastening materials for X-Rail

Product information

Combination option for Counter plate

Product information

X-Rail Fall protection

Brochure

X-Rail Fall Protection technical

Product information

X-Rail Fall protection

Assembly instruction

Product information

Our X-Rail fall protection system can be used as an edge protection for mezzanine floors. The system is a modification of our X-Guard range and therefore the system can fill dual purposes, mezzanine protection and machine guarding.

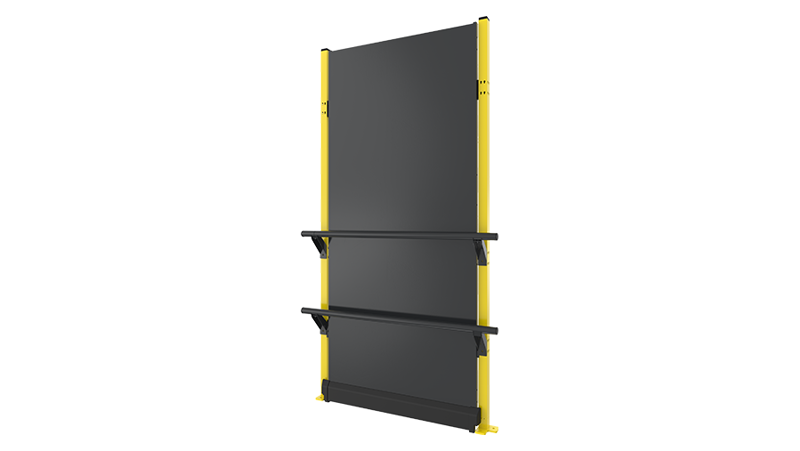

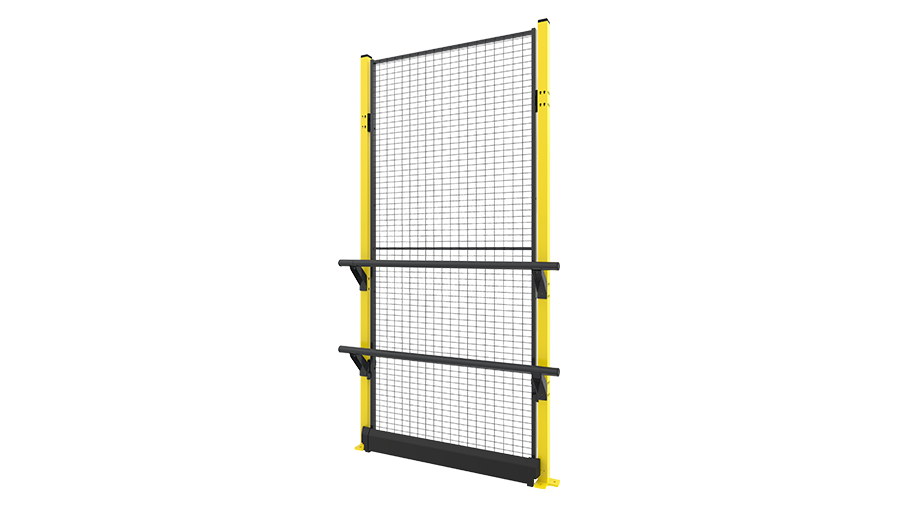

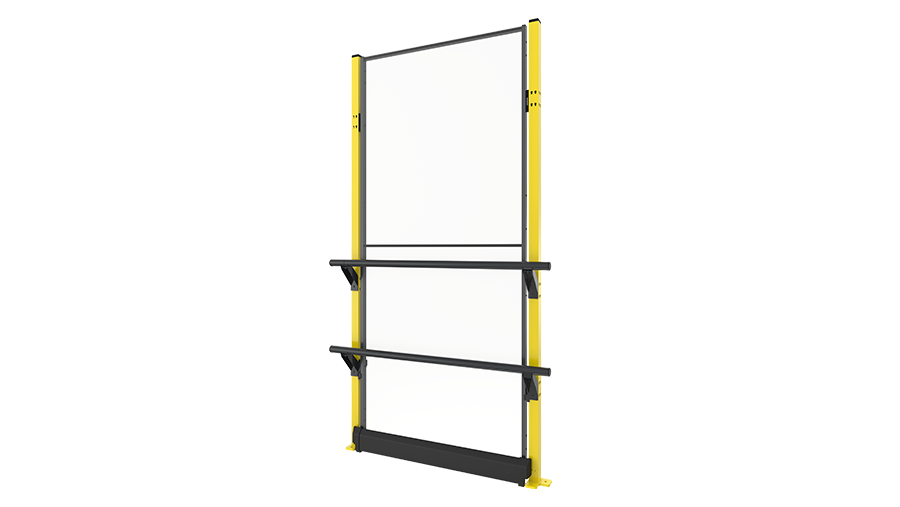

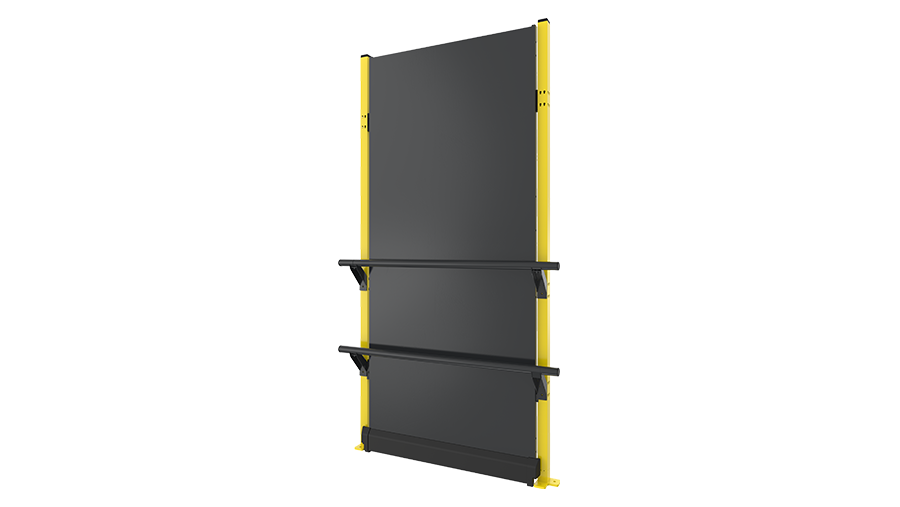

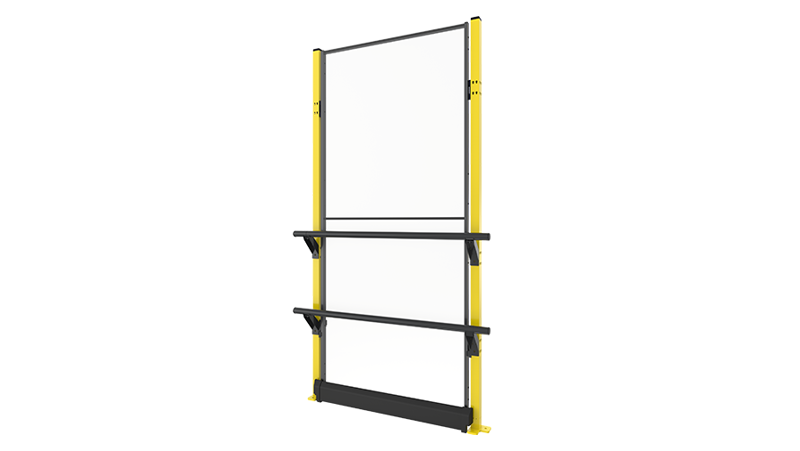

X-Rail 2300 mm can be used either without panels or with X-Guard Classic panels - mesh, plastic, and sheet metal.

Note! If no panel is used between the posts – Handrail, Knee rail and kick plate are used. If a panel is used between the posts, only the handrail and kickplate is mandatory.
