Mesh Panel Bracket

3D

Axelent offers several mounting possibilities, of which Bracket Mounting, Top Mounting and Keyhole Mounting are the most common. All mountings are quick and easy to assemble.

The mesh panel bracket enables vertical cable runs through the middle of the mesh panels. Brackets, Pendants and X10 Brackets enable optional placement on machines, walls, ceilings and floors.

Get your quote now
Design safety solutions

Design your safety solutions in our drawing tool, Safety Design

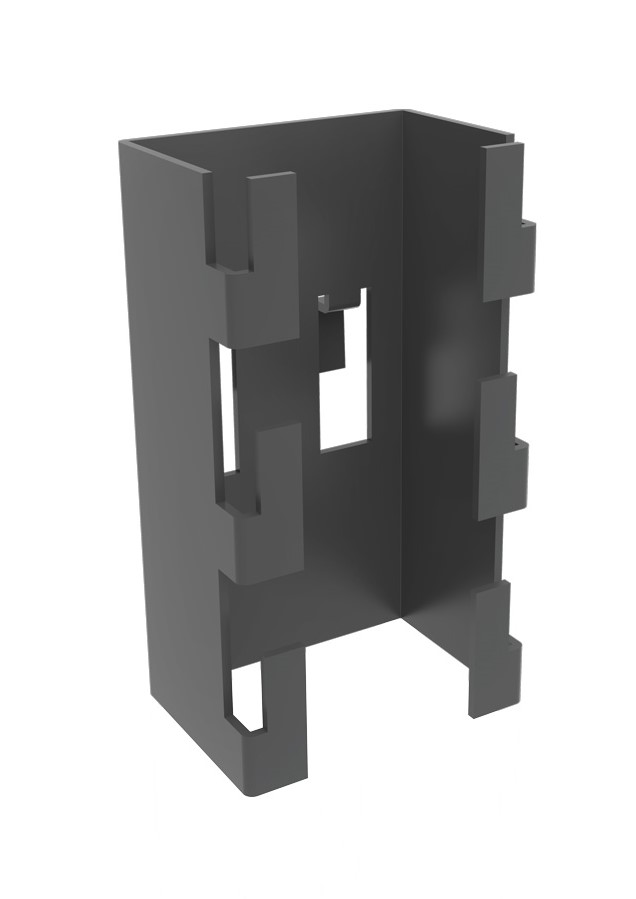

7700-084 7700-084

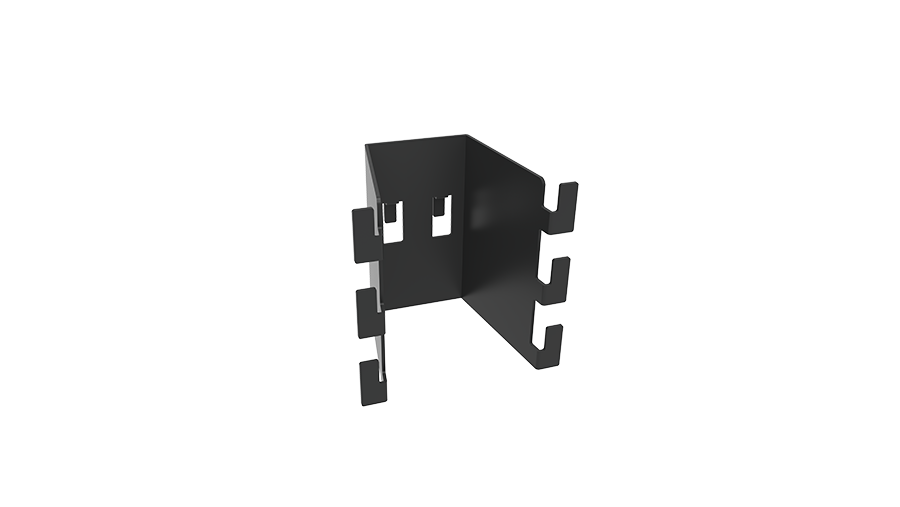

7700-090 Mesh Panel Bracket

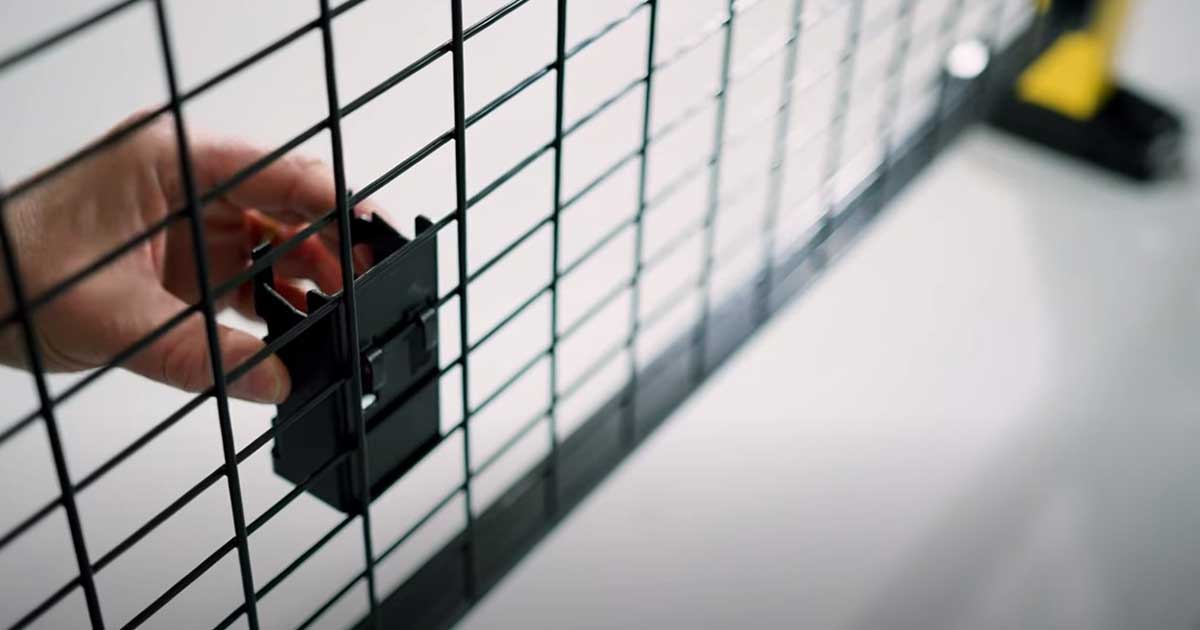

how to assemble mesh panel bracket
Select CAD Format
1/3 7700-084 2/3 Mesh Panel Bracket 3/3 how to assemble mesh panel bracket

Models

CAD Article Description Surface Treatment
7700-084 Mesh Panel Mini Bracket Black Zink
1
7700-090 Mesh Panel Bracket Black Zink
1
View more View less
