Brackets

Brackets

Bracket

3D

Axelent offers several mounting possibilities, of which Bracket Mounting, Top Mounting and Keyhole Mounting are the most common. All mountings are quick and easy to assemble.

The mesh panel bracket enables vertical cable runs through the middle of the mesh panels. Brackets, Pendants and X10 Brackets enable optional placement on machines, walls, ceilings and floors.

Get your quote now
Design safety solutions

Design your safety solutions in our drawing tool, Safety Design

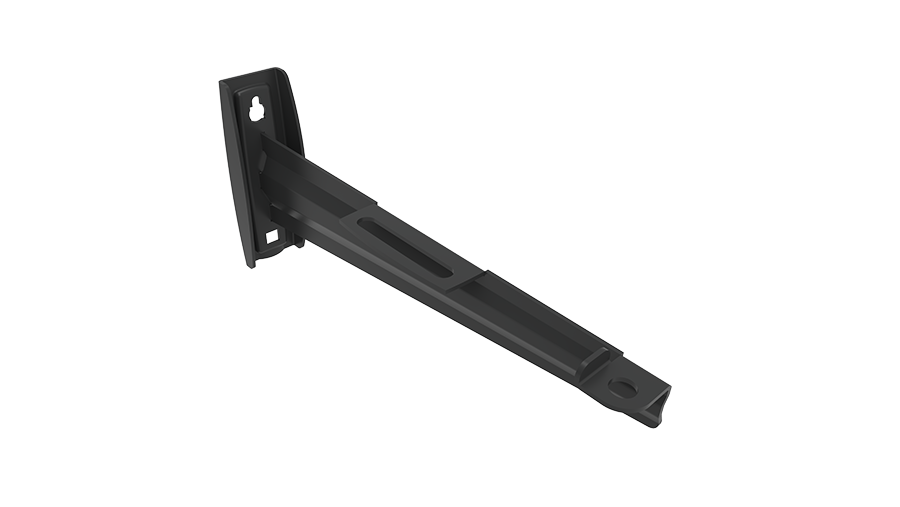

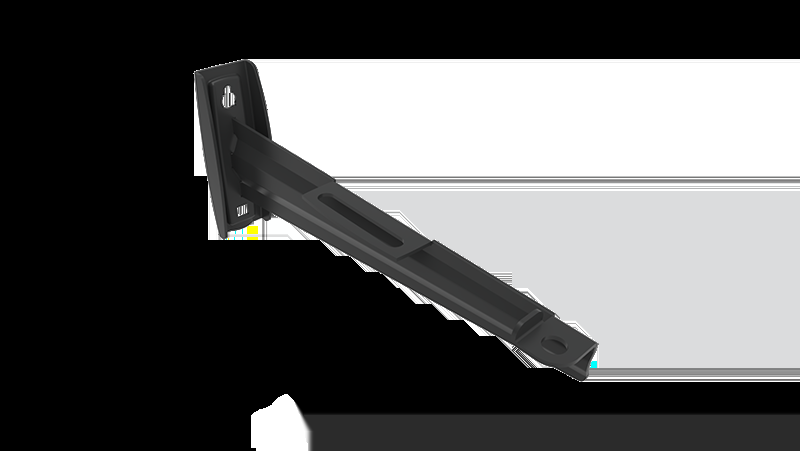

2715-220 Bracket

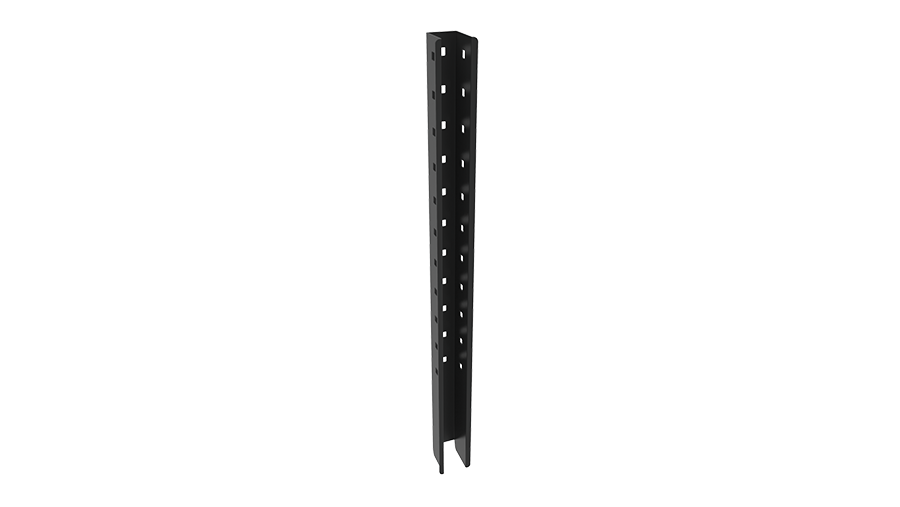

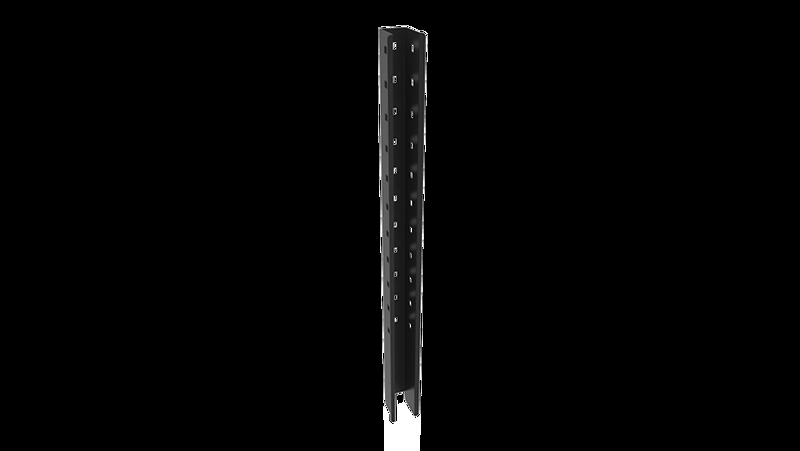

7700-032 Bracket

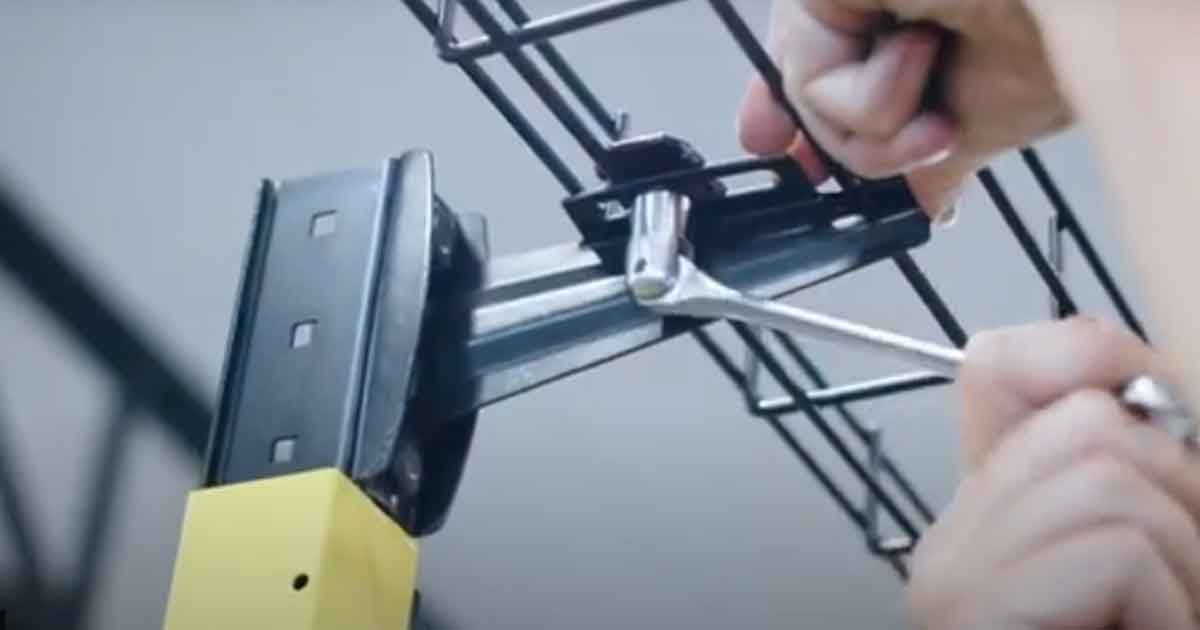

how to assemble x-guard bracket
Select CAD Format
1/3 Bracket 2/3 Bracket 3/3 how to assemble x-guard bracket

Models

CAD Article Description Surface Treatment
2715-120 X15 Bracket 60-120 Black Zink
2715-220 X15 Bracket 220 Black Zink
1
2715-320 X15 Bracket 320 Black Zink
2715-420 X15 Bracket 420 Black Zink
7700-032 Bracket Holder 50x50 Black Zink
1
7700-037 Bracket holder aluminium rail Black Zink
7700-188 Bracket holder 70x70 Black Zink
View more View less
