X-Guard mesh panels come in two sizes of mesh; Premium 50x20 and Classic 50x30 mm. The safety distance determines the size of mesh required. The Classic 50x30 mesh requires a minimum distance of 200 mm while the Premium 50x20 only requires 120 mm.

Read more
Get your quote now
Design safety solutions

Design your safety solutions in our drawing tool, Safety Design

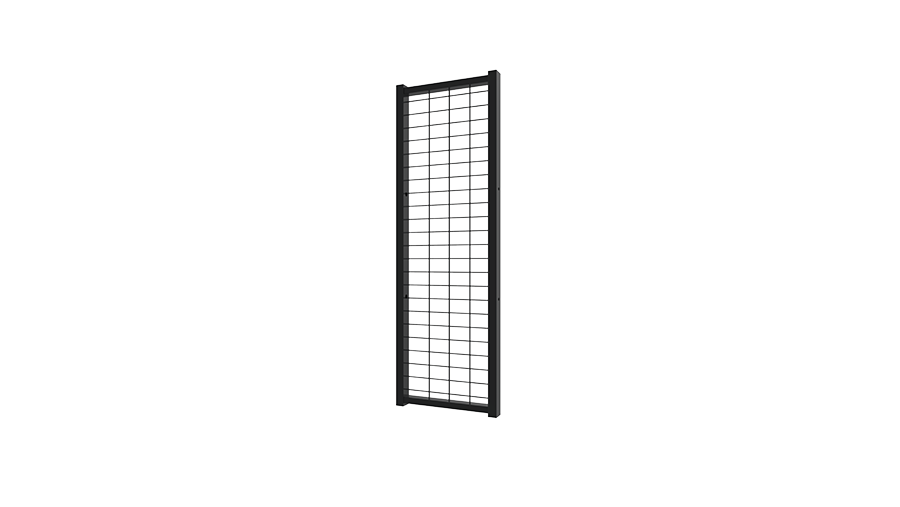

W322-075025 Mesh panel

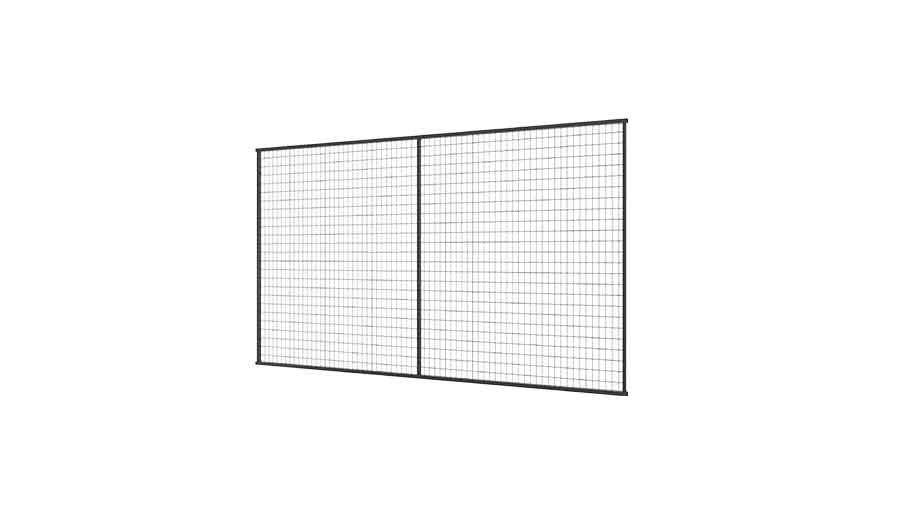

W322-130220 horisontal mesh panel

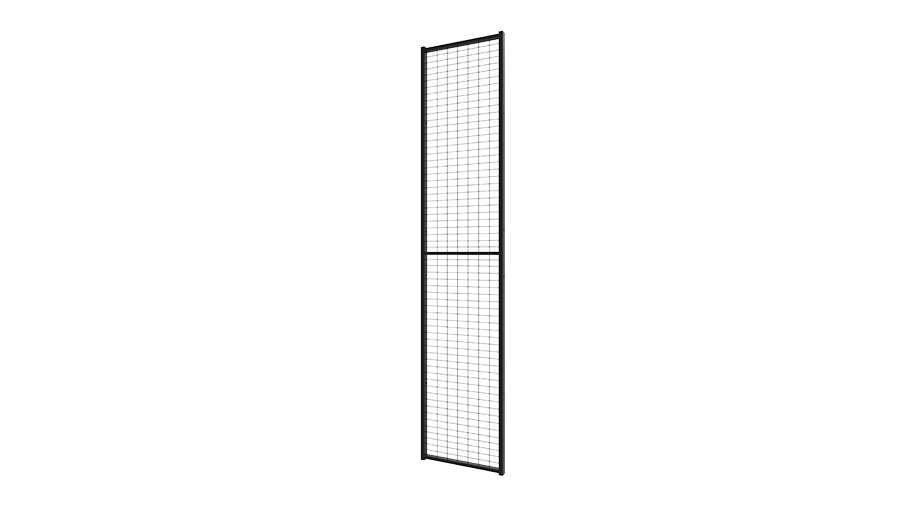

W322-190040 Mesh panel

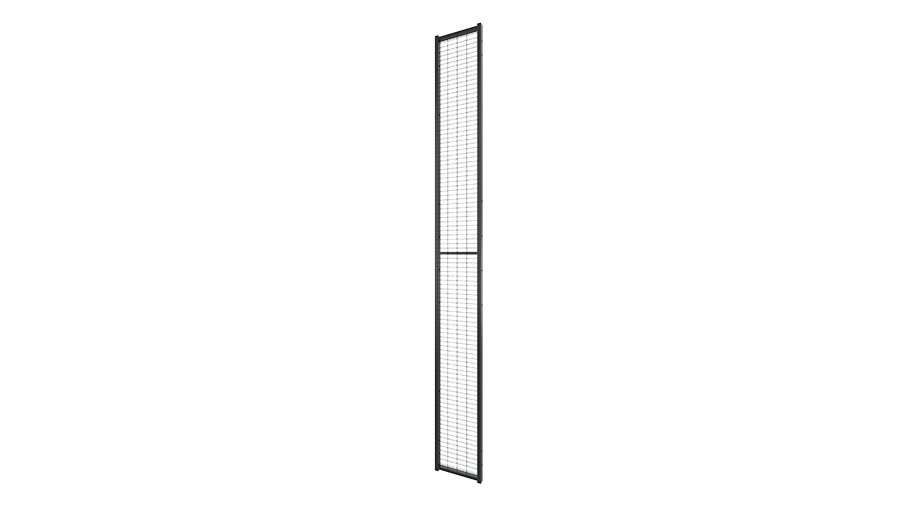

W521-220025 Mesh panel
W322-220100 Mesh panel

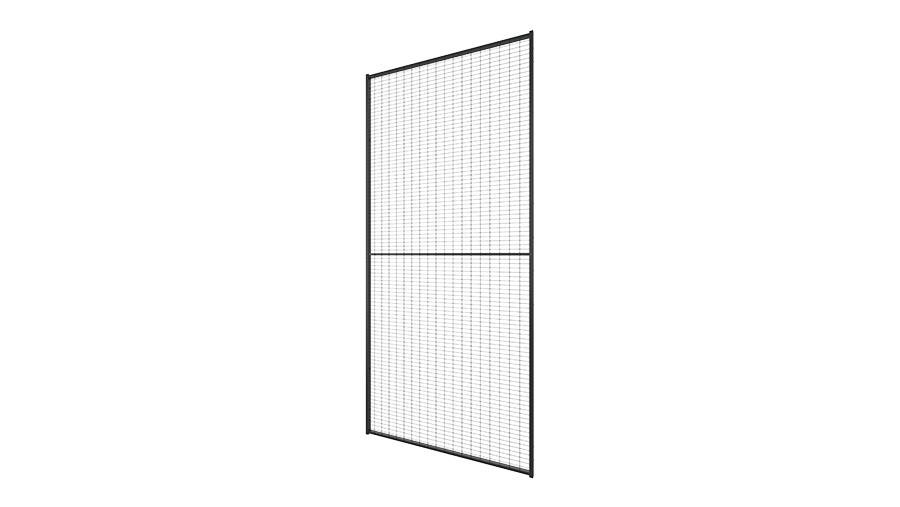

W521-220100 Mesh panel

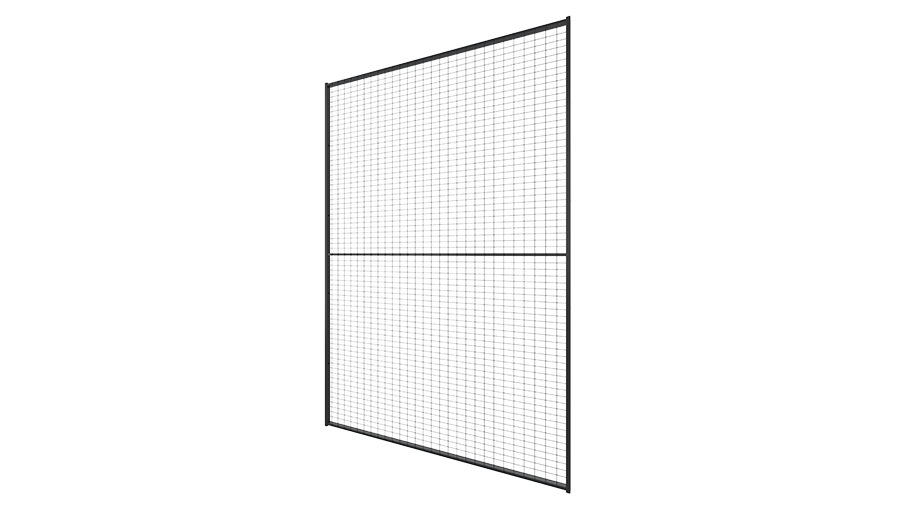

W322-220150 Mesh panel
Select CAD Format
1/7 Mesh panel 2/7 horisontal mesh panel 3/7 Mesh panel 4/7 Mesh panel 5/7 Mesh panel 6/7 Mesh panel 7/7 Mesh panel

Models

  • Height 750 mm

    13 Articles
    CAD Article Description Height x Width (mm) Mesh Aperture Safety Distance (mm)
    		W322-075025 Classic 750x250 50x30 200
    1
    		W322-075040 Classic 750x400 50x30 200
    		W322-075050 Classic 750x500 50x30 200
    		W322-075060 Classic 750x600 50x30 200
    		W322-075070 Classic 750x700 50x30 200
    		W322-075080 Classic 750x800 50x30 200
    		W322-075090 Classic 750x900 50x30 200
    		W322-075100 Classic 750x1000 50x30 200
    		W322-075110 Classic 750x1100 50x30 200
    		W322-075120 Classic 750x1200 50x30 200
    		W322-075130 Classic 750x1300 50x30 200
    		W322-075140 Classic 750x1400 50x30 200
    		W322-075150 Classic 750x1500 50x30 200
    View more View less

  • Height 1300 mm

    14 Articles
    CAD Article Description Height x Width (mm) Mesh Aperture Safety Distance (mm)
    		W322-130025 Classic 1300x250 50x30 200
    		W322-130040 Classic 1300x400 50x30 200
    		W322-130050 Classic 1300x500 50x30 200
    		W322-130060 Classic 1300x600 50x30 200
    		W322-130070 Classic 1300x700 50x30 200
    		W322-130080 Classic 1300x800 50x30 200
    		W322-130090 Classic 1300x900 50x30 200
    		W322-130100 Classic 1300x1000 50x30 200
    		W322-130110 Classic 1300x1100 50x30 200
    		W322-130120 Classic 1300x1200 50x30 200
    		W322-130130 Classic 1300x1300 50x30 200
    		W322-130140 Classic 1300x1400 50x30 200
    		W322-130150 Classic 1300x1500 50x30 200
    		W322-130220 Classic 1300x2200 50x30 200
    1 1
    View more View less

  • Height 1900 mm

    13 Articles
    CAD Article Description Height x Width (mm) Mesh Aperture Safety Distance (mm)
    		W322-190025 Classic 1900x250 50x30 200
    		W322-190040 Classic 1900x400 50x30 200
    1
    		W322-190050 Classic 1900x500 50x30 200
    		W322-190060 Classic 1900x600 50x30 200
    		W322-190070 Classic 1900x700 50x30 200
    		W322-190080 Classic 1900x800 50x30 200
    		W322-190090 Classic 1900x900 50x30 200
    		W322-190100 Classic 1900x1000 50x30 200
    		W322-190110 Classic 1900x1100 50x30 200
    		W322-190120 Classic 1900x1200 50x30 200
    		W322-190130 Classic 1900x1300 50x30 200
    		W322-190140 Classic 1900x1400 50x30 200
    		W322-190150 Classic 1900x1500 50x30 200
    View more View less

  • Height 2200 mm

    22 Articles
    CAD Article Description Height x Width (mm) Mesh Aperture Safety Distance (mm)
    		W322-220025 Classic 2200x250 50x30 200
    		W521-220025 Premium 2200x250 50x20 120
    1
    		W322-220040 Classic 2200x400 50x30 200
    		W521-220040 Premium 2200x400 50x20 120
    		W322-220050 Classic 2200x500 50x30 200
    		W322-220060 Classic 2200x600 50x30 200
    		W322-220070 Classic 2200x700 50x30 200
    		W521-220070 Premium 2200x700 50x20 120
    		W322-220080 Classic 2200x800 50x30 200
    		W322-220090 Classic 2200x900 50x30 200
    		W322-220100 Classic 2200x1000 50x30 200
    1
    		W521-220100 Premium 2200x1000 50x20 120
    1
    		W322-220110 Classic 2200x1100 50x30 200
    		W322-220120 Classic 2200x1200 50x30 200
    		W521-220120 Premium 2200x1200 50x20 120
    		W322-220130 Classic 2200x1300 50x30 200
    		W322-220140 Classic 2200x1400 50x30 200
    		W322-220150 Classic 2200x1500 50x30 200
    1
    		W521-220150 Premium 2200x1500 50x20 120
    		W520-220100 Special 2200x1000 25x25 120
    		W520-220120 Special 2200x1200 25x25 120
    		W520-220150 Special 2200x1500 25x25 120
    View more View less

  • Height 2400 mm

    13 Articles
    CAD Article Description Height x Width (mm) Mesh Aperture Safety Distance (mm)
    		W322-240025 Classic 2400x250 50x30 200
    1
    		W322-240040 Classic 2400x400 50x30 200
    1
    		W322-240050 Classic 2400x500 50x30 200
    1
    		W322-240060 Classic 2400x600 50x30 200
    1
    		W322-240070 Classic 2400x700 50x30 200
    1
    		W322-240080 Classic 2400x800 50x30 200
    1
    		W322-240090 Classic 2400x900 50x30 200
    1
    		W322-240100 Classic 2400x1000 50x30 200
    1
    		W322-240110 Classic 2400x1100 50x30 200
    1
    		W322-240120 Classic 2400x1200 50x30 200
    1
    		W322-240130 Classic 2400x1300 50x30 200
    1
    		W322-240140 Classic 2400x1400 50x30 200
    1
    		W322-240150 Classic 2400x1500 50x30 200
    1
    View more View less

Downloads

X-guard classic

Assembly instruction

X-Guard Premium

Assembly instruction

X-Guard Technical

Brochure

Product information

X-Guard mesh panels come in two sizes of mesh; Premium 50x20 and Classic 50x30 mm. The safety distance determines the size of mesh required. The Classic 50x30 mesh requires a minimum distance of 200 mm while the Premium 50x20 only requires 120 mm.

The Classic 50x30 comes in four heights. The 750 mm panel is only used as an extension panel to the other heights. The panels come in thirteen widths, with the exception of the 1300 mm panel, which comes in fourteen widths. All panels have a 30x20 mm frame with factory-fixed brackets to facilitate assembly.

The mesh consists of vertical wires of Ø 3 mm and horizontal wires of Ø 2.5 mm.

The standard panel colour is black (RAL 9011) but customised colours are available upon request.



The Premium 50x20 is 2200 mm in height and comes in six widths. All panels have a 30x20 mm frame with factory-fixed brackets to facilitate assembly.

The mesh consists of vertical wires of Ø 3 mm and horizontal wires of Ø 2.5 mm.

The standard panel colour is black (RAL 9011) but customised colours are available upon request.

View more View less
