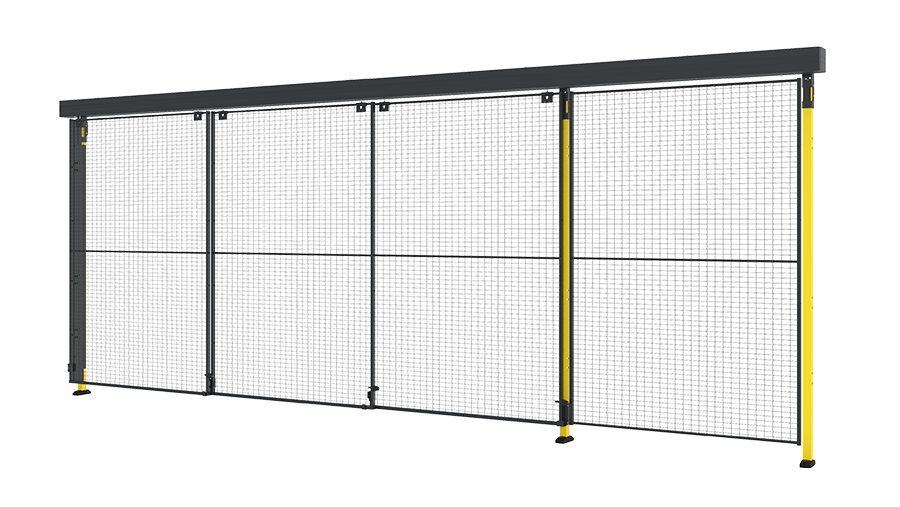

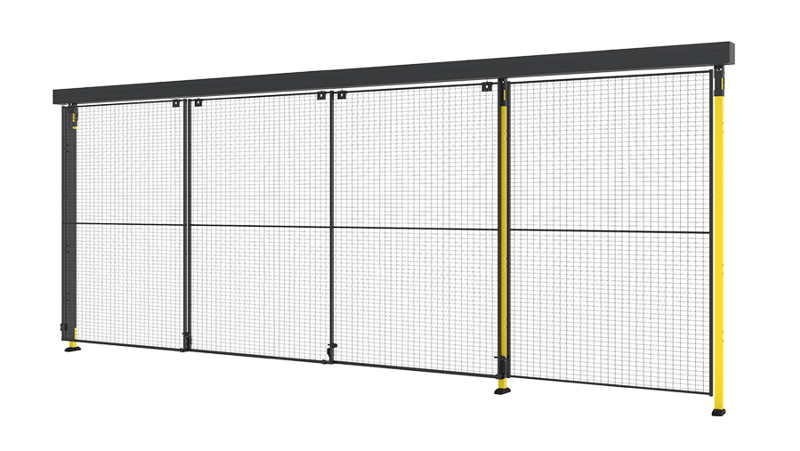

Triple sliding door with 3-step rail

3D

A triple telescopic sliding door with rails is used where a large opening is required but where space is limited in the sideways direction. The panels overlap each other instead sliding to the side.

Read more
Get your quote now
Design safety solutions

Design your safety solutions in our drawing tool, Safety Design

Models

  • Height 2000 mm

    4 Articles
    CAD Article Description Max Opening Width (mm) Max Height (mm) Panel Fits Posts
    		D23-200450R Triple sliding door with 3-step rail 4360 2150 Mesh Classic 50x50
    2
    		D23-200450L Triple sliding door with 3-step rail 4360 2150 Mesh Classic 50x50
    2
    		D43-200450R Triple sliding door with 3-step rail 4385 2150 Mesh Premium 70x70
    2
    		D43-200450L Triple sliding door with 3-step rail 4385 2150 Mesh Premium 70x70
    2
    View more View less

  • Height 2300 mm

    4 Articles
    CAD Article Description Max Opening Width (mm) Max Height (mm) Panel Fits Posts

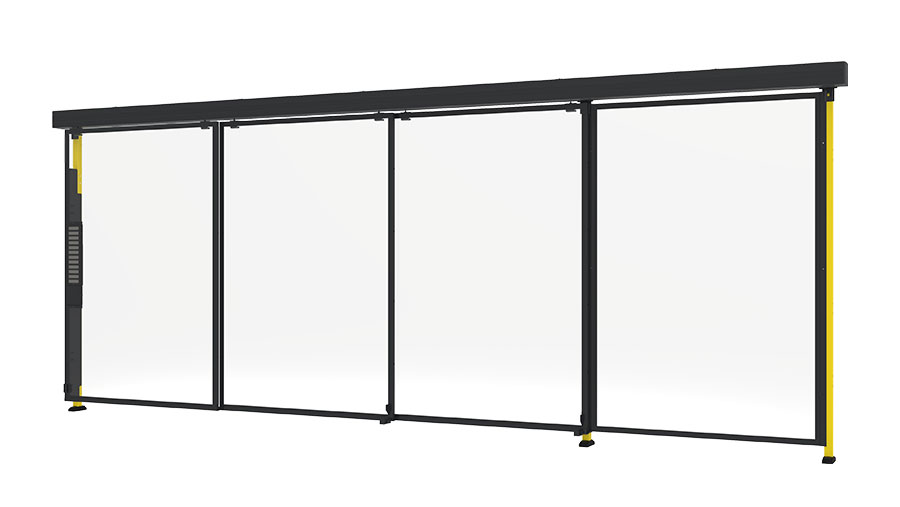

    		D23-230450R Triple sliding door with 3-step rail 4360 2450 Mesh
    Plastic
    Sheet metal     		Classic 50x50
    3 2
    		D23-230450L Triple sliding door with 3-step rail 4360 2450 Mesh
    Plastic
    Sheet metal     		Classic 50x50
    4 2
    		D43-230450R Triple sliding door with 3-step rail 4385 2450 Mesh Premium 70x70
    2 2
    		D43-230450L Triple sliding door with 3-step rail 4385 2450 Mesh
    Plastic
    Sheet metal     		Premium 70x70
    2 2
    View more View less

  • Height 2500 mm

    4 Articles
    CAD Article Description Max Opening Width (mm) Max Height (mm) Panel Fits Posts
    		D23-250450L Triple sliding door with 3-step rail 4360 2650 Mesh Classic 50x50
    2
    		D23-250450R Triple sliding door with 3-step rail 4360 2650 Mesh Classic 50x50
    2
    		D43-250450L Triple sliding door with 3-step rail 4385 2650 Mesh Premium 70x70
    2
    		D43-250450R Triple sliding door with 3-step rail 4385 2650 Mesh Premium 70x70
    2
    View more View less

Downloads

X-Guard Technical

Brochure

Product information

A triple telescopic sliding door with rails is used where a large opening is required but where space is limited in the sideways direction. The panels overlap each other instead sliding to the side.

Maximum height is 2500 mm and maximum width is 3x1500 mm. *The maximum width varies depending on the used locking solution.

(Posts, handles and panels are not included in the door package. Opening dimensions may be limited depending on the type of lock chosen.)

View more View less
See the product in Axelent Xperience
Related articles

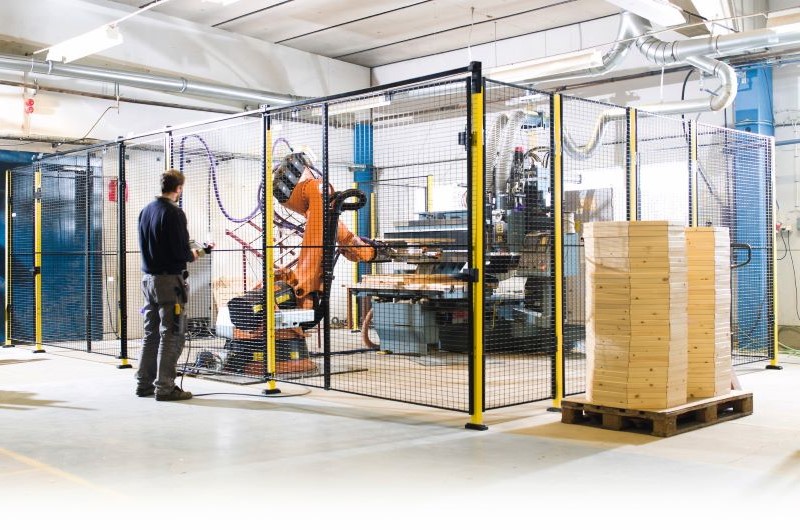

What Are the Different Types of Machine Guards?

27 Jun 2024 • Knowledge, Article, FAQ, Machine Safety, X-Guard, Safety Solutions

What Are the Different Types of Machine Guards?
Axelent gives tips for a safe warehouse

12 Mar 2024 • Warehouse, World of Axelent, Article, Fall protection, Mesh shelving, X-Protect, Column Guard, Mesh panel

Axelent gives tips for a safe warehouse

Related products

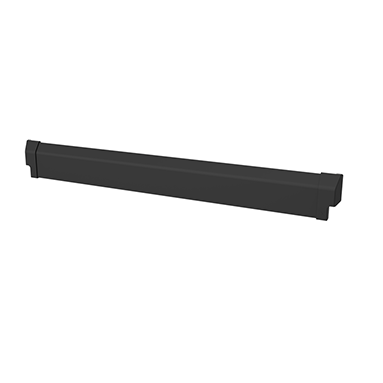

Kickplate

Accessories

Kick plate
35 Articles

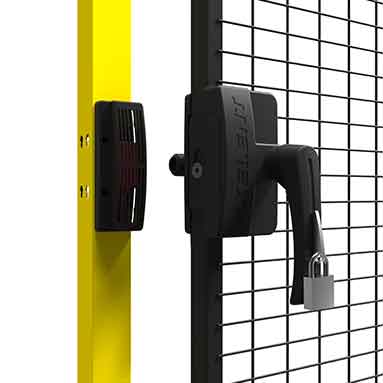

Hitch lock

Locks and switches

Hitch lock
3 Articles

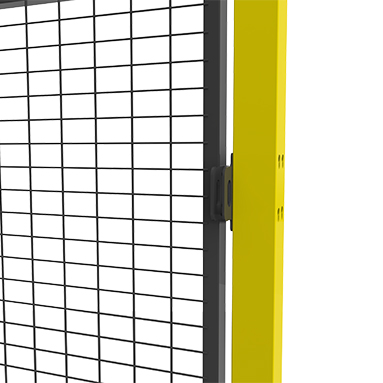

Padlock bracket

Locks and switches

Padlock brackets
3 Articles

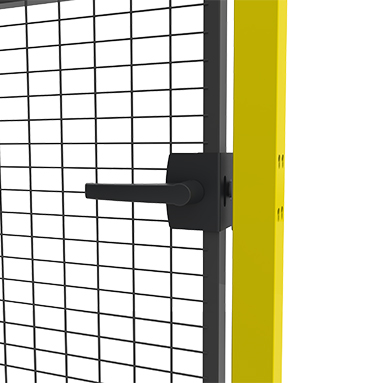

Snap lock

Locks and switches

Snap lock
4 Articles

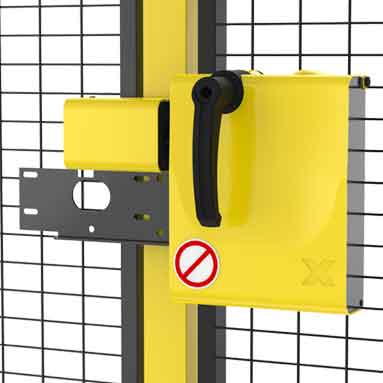

X-Lock

Locks and switches

X-Lock
5 Articles

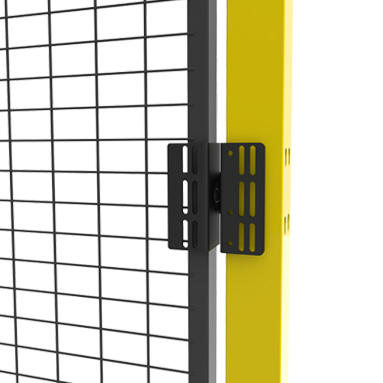

Switch fittings

Locks and switches

Switch fittings
33 Articles
Kickplate

Accessories

Kick plate
35 Articles

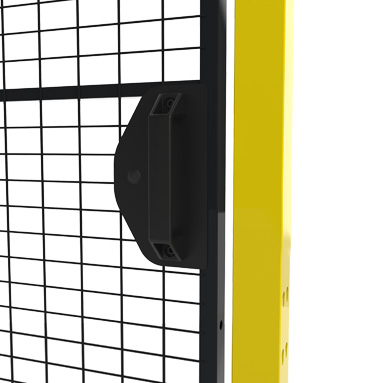

Bail handle

Accessories

Bail handle
1 Articles

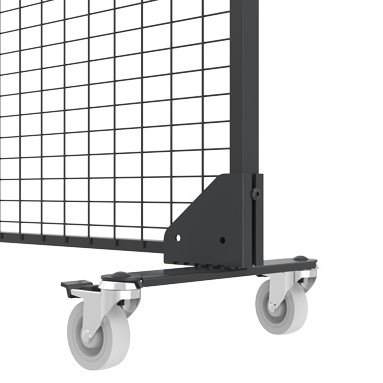

Support wheel
