Single sliding door without rail

3D

Single sliding doors without rails are the ideal solution where objects higher than the rail need to pass through the opening. The door is a good choice where goods must be moved using an overhead traveling crane or fork lift truck.

Read more
Get your quote now
Design safety solutions

Design your safety solutions in our drawing tool, Safety Design

Models

  • Width 900 mm

    4 Articles
    CAD Article Description Max Opening Width (mm) Max Height (mm) Panel Fits Posts

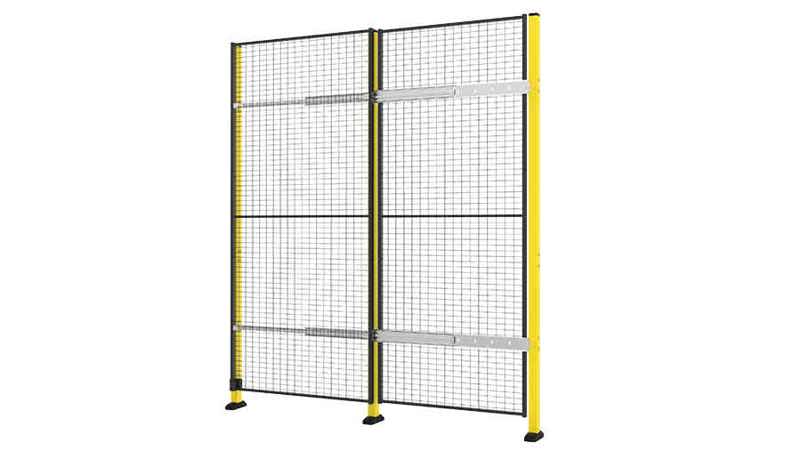

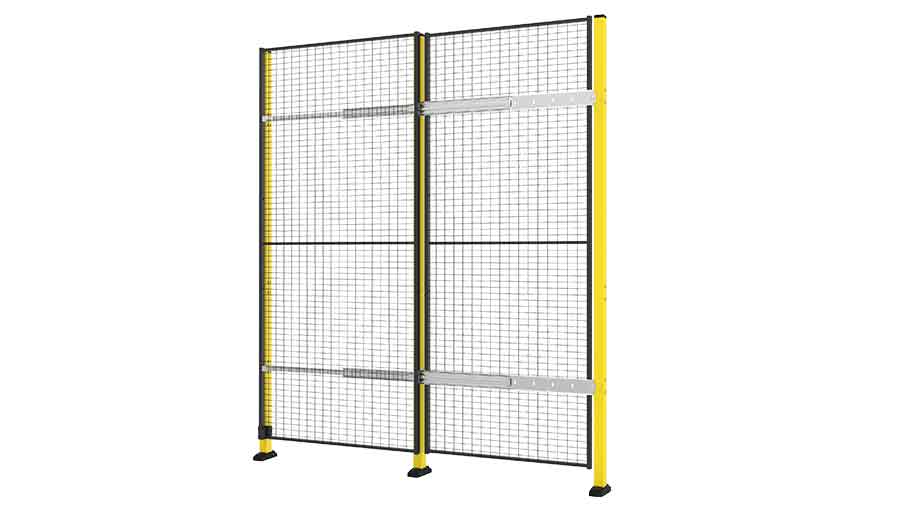

    		D26-XXX090 Single sliding door 2-step w/o upper rail 890 2500 Mesh Classic 50x50
    1 2
    		D46-XXX090 Single sliding door 2-step w/o upper rail 860 2300 Mesh Premium 70x70
    1 2
    		DP26-XXX090 Single sliding door 2-step w/o upper rail 890 2300 Plastic
    Sheet metal     		Classic 50x50
    2 1

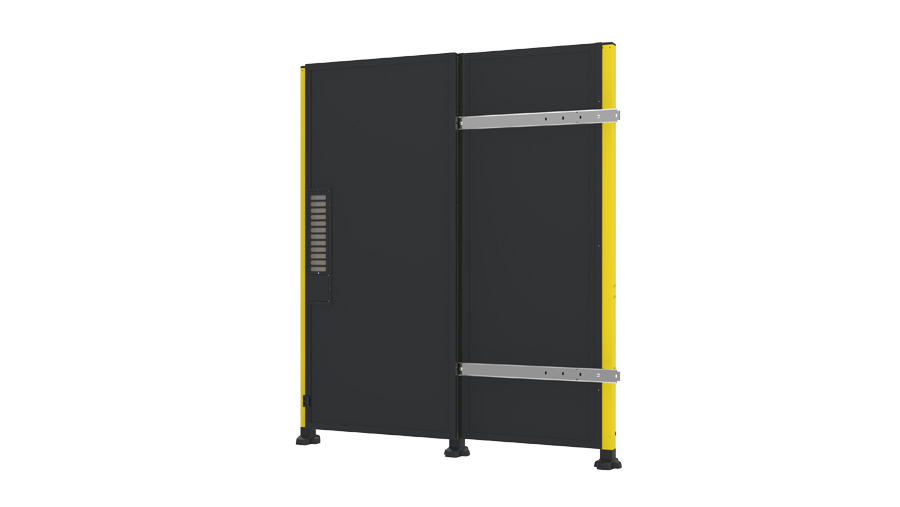

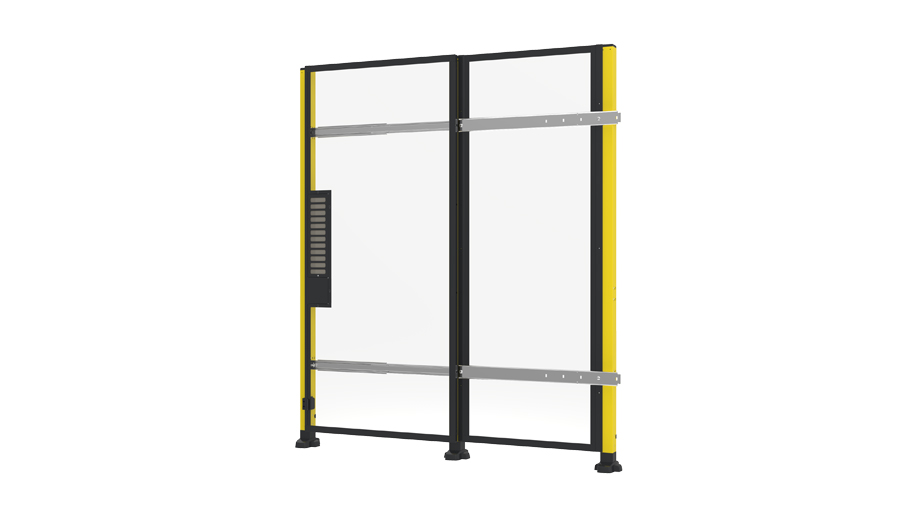

    		DP46-XXX090 Single sliding door 2-step w/o upper rail 860 2300 Plastic
    Sheet metal     		Premium 70x70
    2 1
    View more View less

  • Width 1400 mm

    4 Articles
    CAD Article Description Max Opening Width (mm) Max Height (mm) Panel Fits Posts

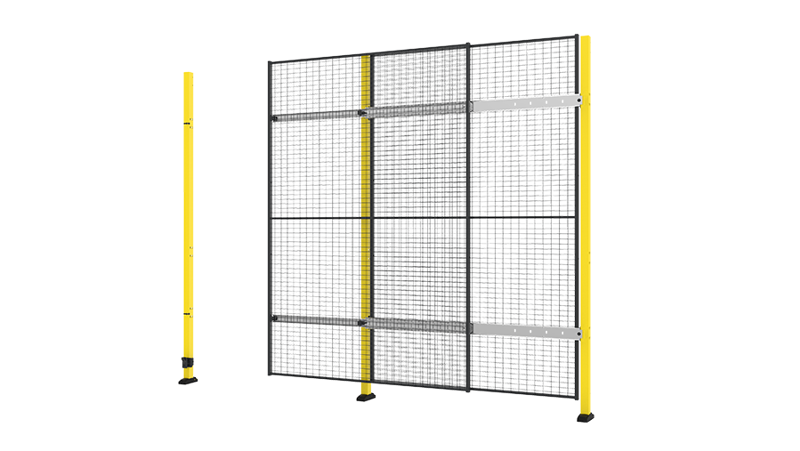

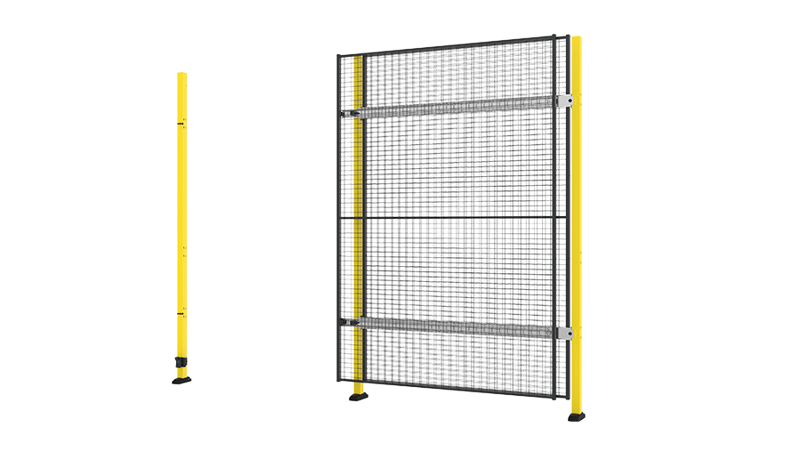

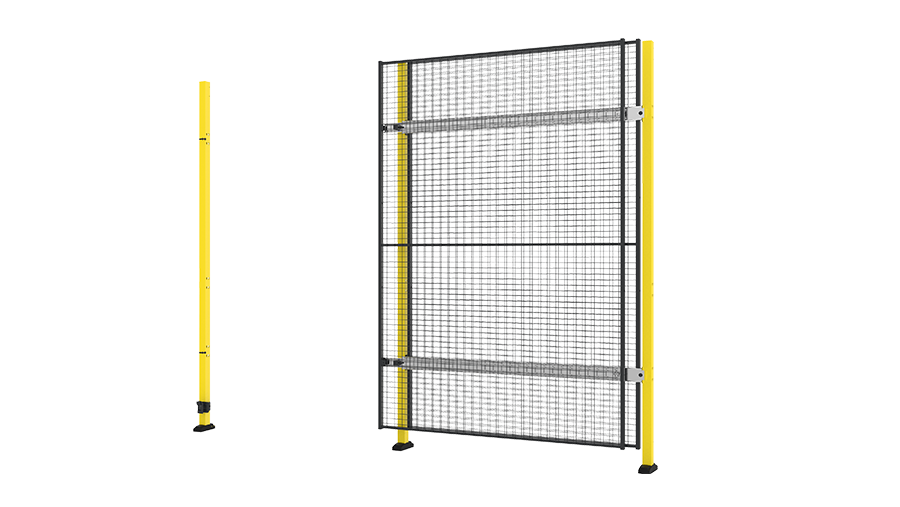

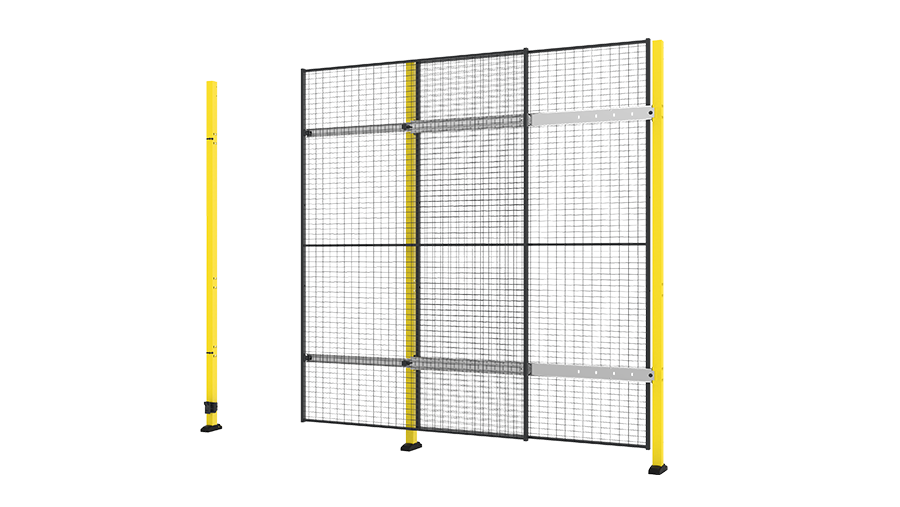

    		D26-XXX140 Single sliding door 2-step w/o upper rail 1390 2500 Mesh Classic 50x50
    2 2

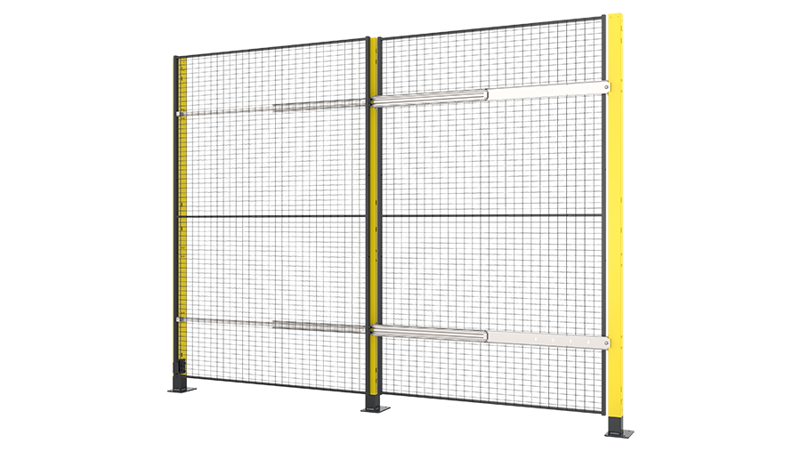

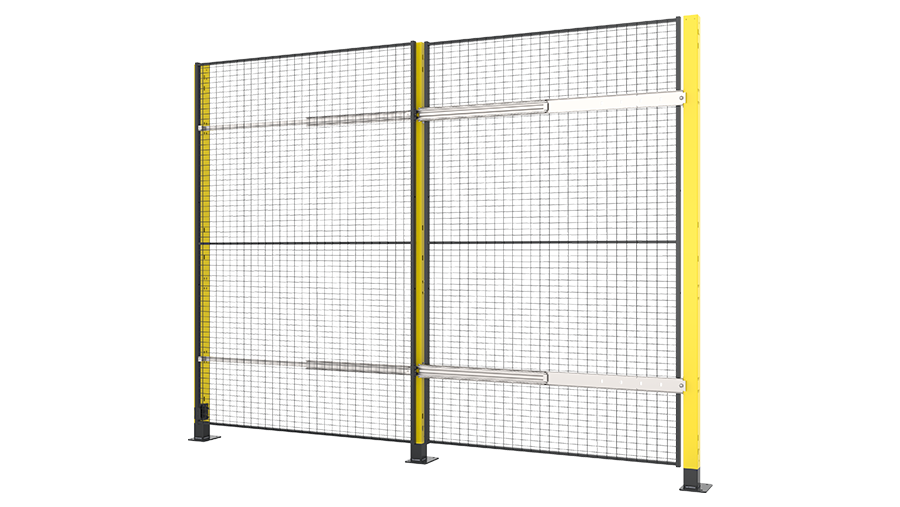

    		D46-XXX140 Single sliding door 2-step w/o upper rail 1360 2300 Mesh Premium 70x70
    1 2
    		DP26-XXX140 Single sliding door 2-step w/o upper rail 1390 2300 Plastic
    Sheet metal     		Classic 50x50
    1 1
    		DP46-XXX140 Single sliding door 2-step w/o upper rail 1360 2300 Plastic
    Sheet metal     		Premium 70x70
    1 1
    View more View less

  • Width 1900 mm

    10 Articles
    CAD Article Description Max Opening Width (mm) Max Height (mm) Panel Fits Posts

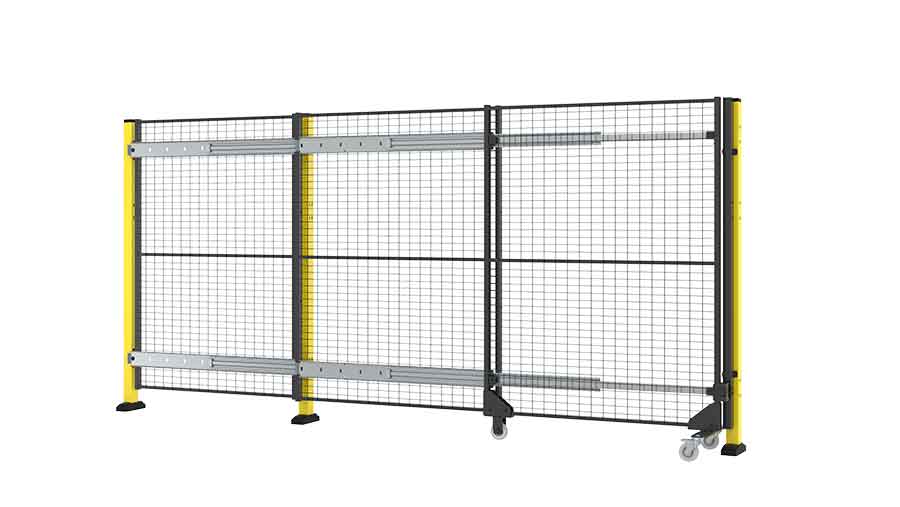

    		D28-140190L Single sliding door 2-step w/o upper rail - left 1790 1400 Mesh Classic 50x50
    1 2
    		D28-140190R Single sliding door 2-step w/o upper rail - right 1790 1400 Mesh Classic 50x50
    1 2

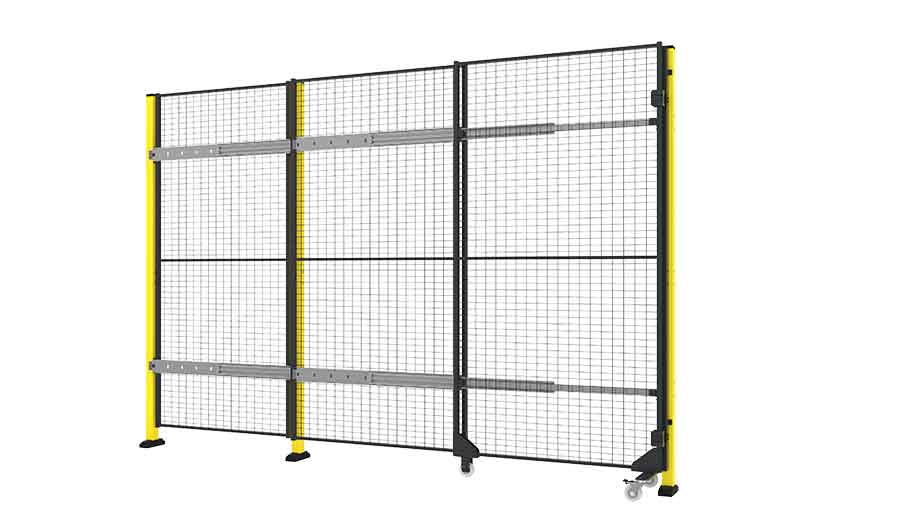

    		D28-200190L Single sliding door 2-step w/o upper rail - left 1790 2000 Mesh Classic 50x50
    1 2
    		D28-200190R Single sliding door 2-step w/o upper rail - right 1790 2000 Mesh Classic 50x50
    1 2

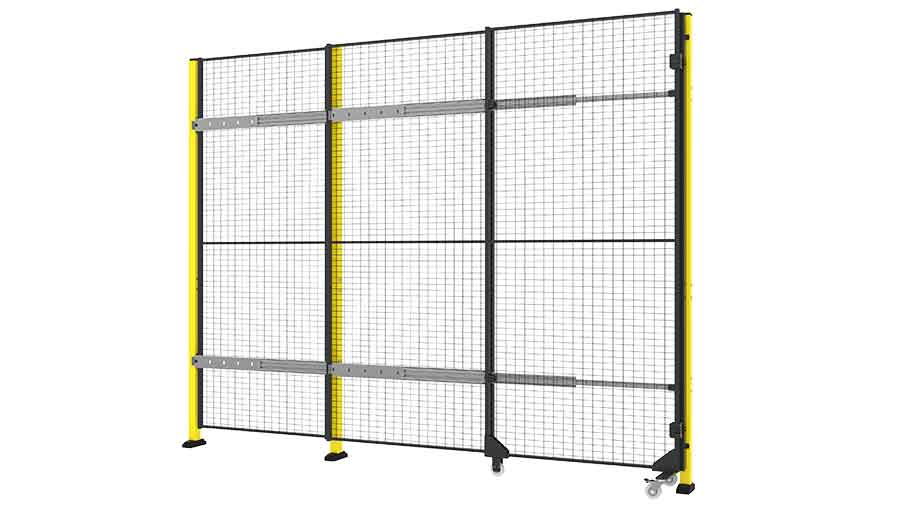

    		D28-230190L Single sliding door 2-step w/o upper rail - left 1790 2300 Mesh Classic 50x50
    1 2
    		D28-230190R Single sliding door 2-step w/o upper rail - right 1790 2300 Mesh Classic 50x50
    1 2

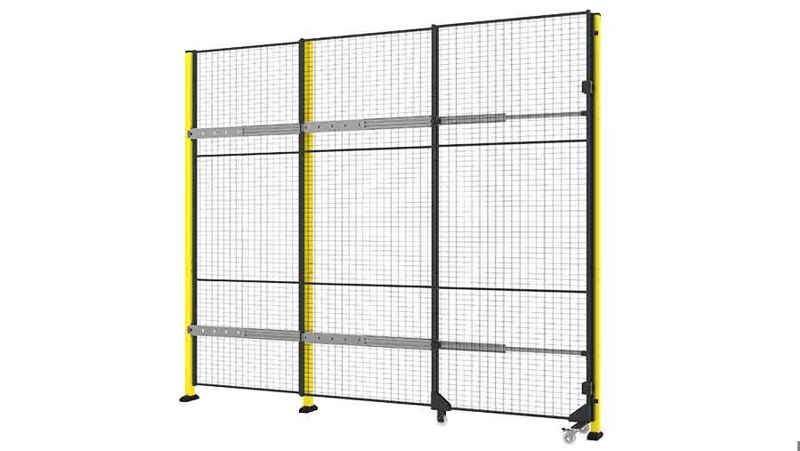

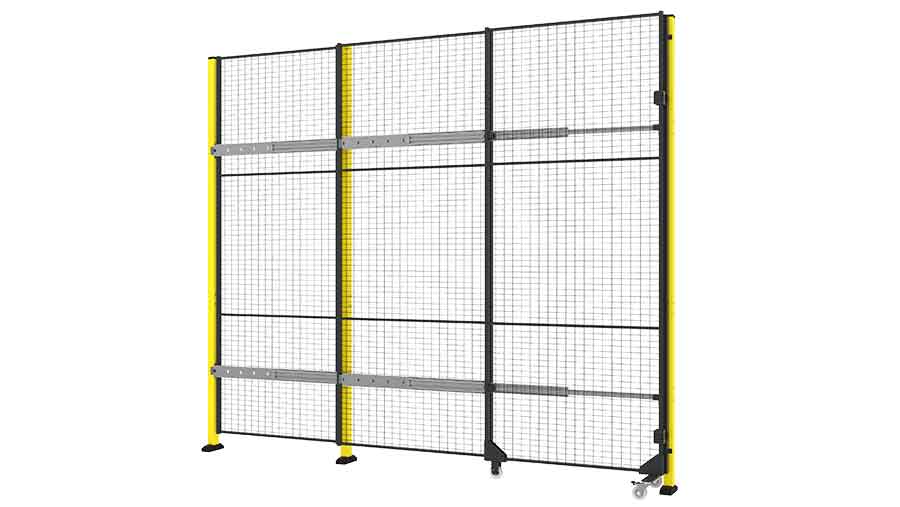

    		D28-250190L Single sliding door 2-step w/o upper rail - left 1790 2500 Mesh Classic 50x50
    1 2
    		D28-250190R Single sliding door 2-step w/o upper rail - right 1790 2500 Mesh Classic 50x50
    1 2
    		DP28-230190L Single sliding door 2 step w/o upper rail- left 1790 2300 Plastic
    Sheet metal     		Classic 50x50
    Premium 70x70
    2 2
    		DP28-230190R Single sliding door 2-step w/o upper rail - right 1790 2300 Plastic
    Sheet metal     		Classic 50x50
    Premium 70x70
    2 2
    View more View less

  • Width 2900 mm

    11 Articles
    CAD Article Description Max Opening Width (mm) Max Height (mm) Panel Fits Posts

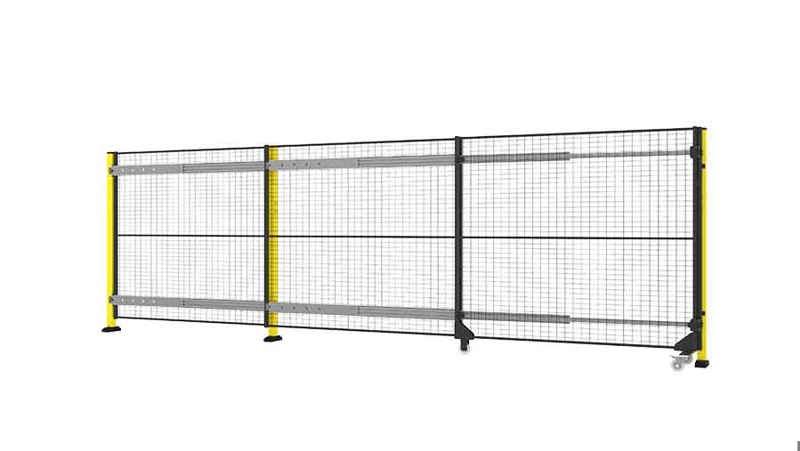

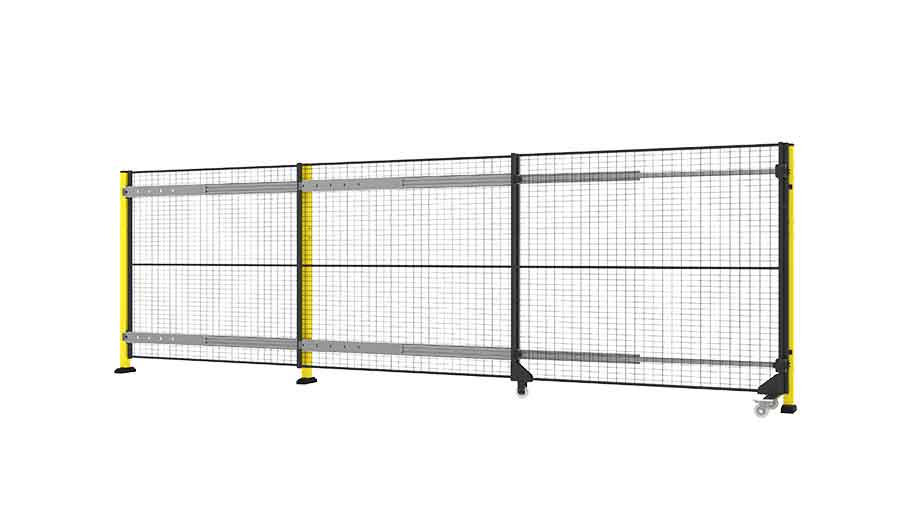

    		D28-140290L Single sliding door 2-step w/o upper rail - left 2790 1400 Mesh Classic 50x50
    1 2

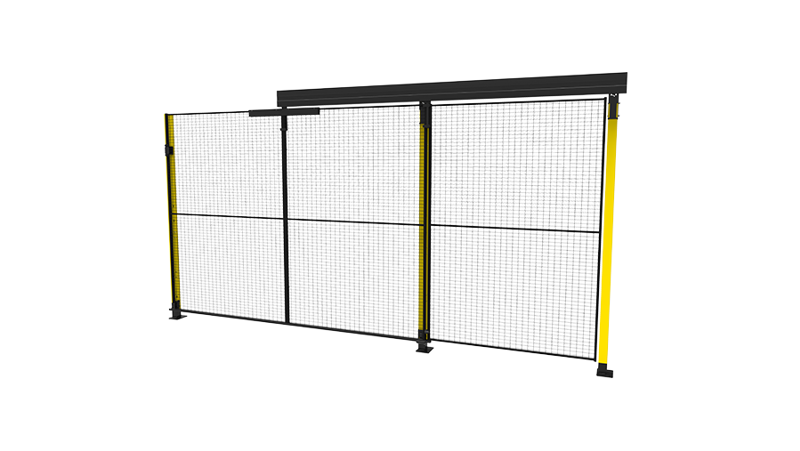

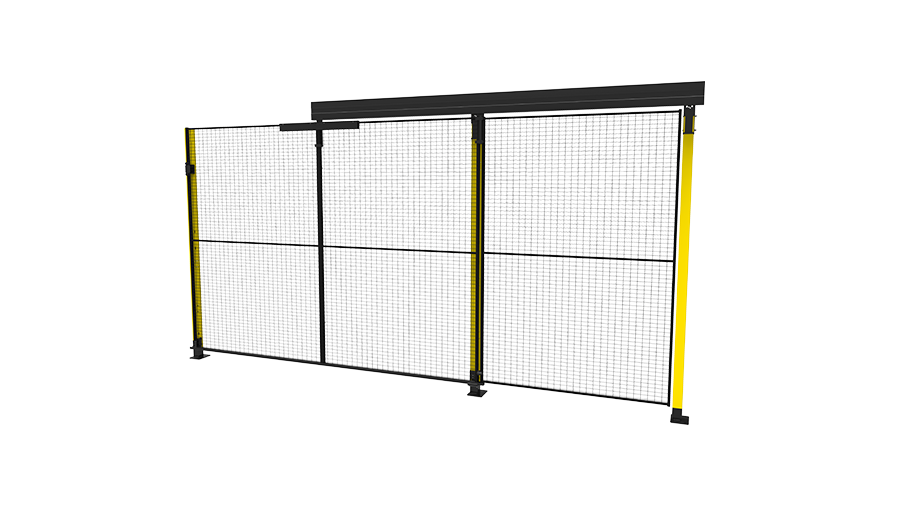

    		D46-XXX290 Single sliding door 2-step w/o upper rail 2840 2300 Mesh Premium 70x70
    1 2
    		D28-140290R Single sliding door 2-step w/o upper rail - right 2790 1400 Mesh Classic 50x50
    1 2
    		D28-200290L Single sliding door 2-step w/o upper rail - left 2790 2000 Mesh Classic 50x50
    1 2

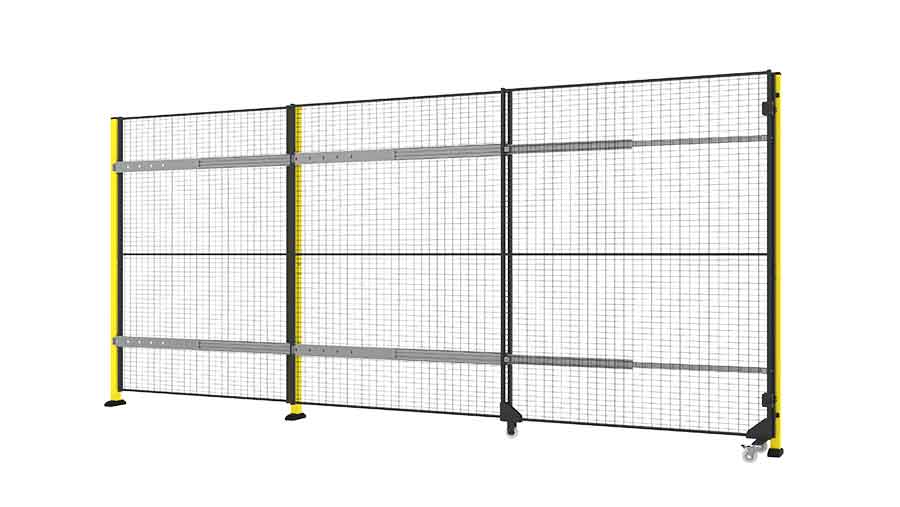

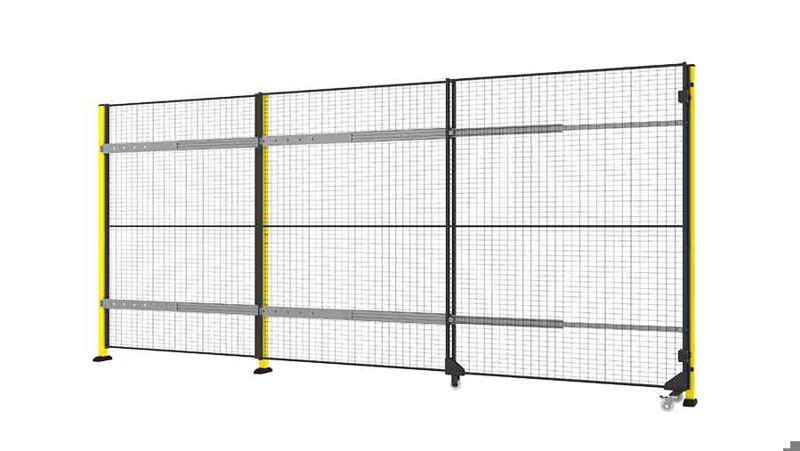

    		D28-200290R Single sliding door 2-step w/o upper rail - right 2790 2000 Mesh Classic 50x50
    Premium 70x70
    1 2

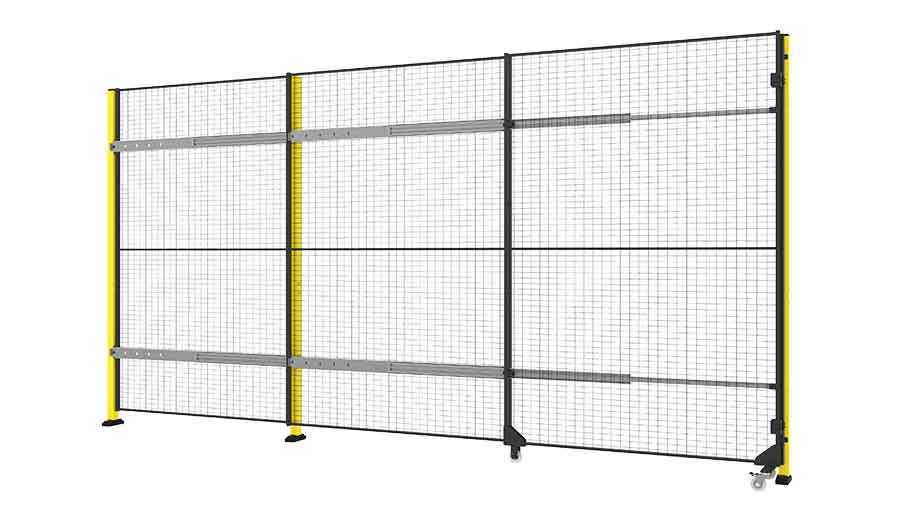

    		D28-230290L Single sliding door 2-step w/o upper rail - left 2790 2300 Mesh Classic 50x50
    Premium 70x70
    1 2

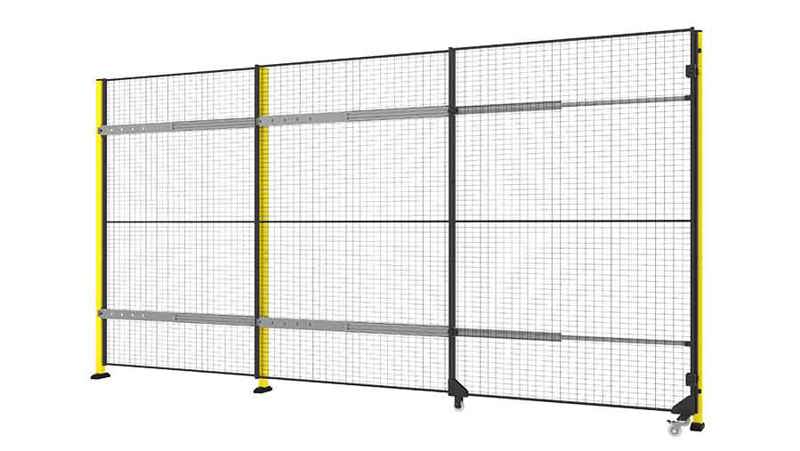

    		D28-230290R Single sliding door 2-step w/o upper rail - right 2790 2300 Mesh Classic 50x50
    Premium 70x70
    1 2

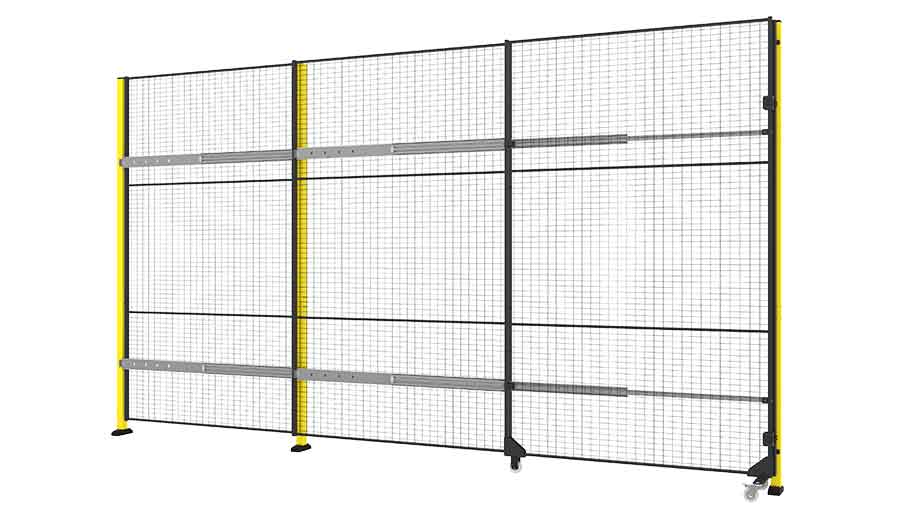

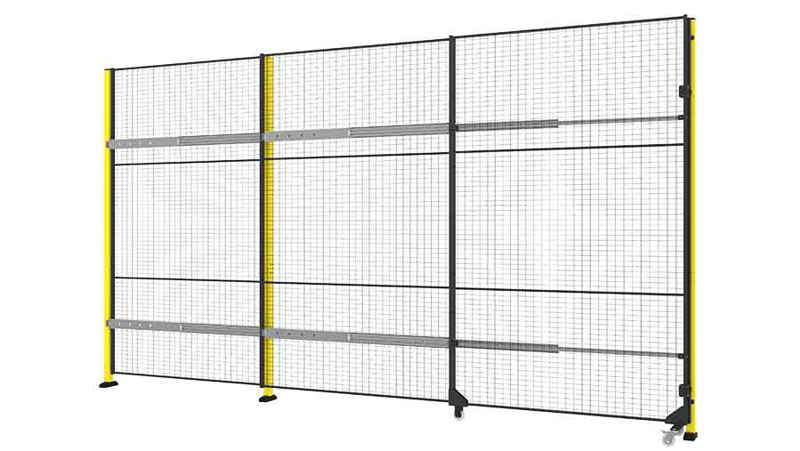

    		D28-250290L Single sliding door 2-step w/o upper rail - left 2790 2500 Mesh Classic 50x50
    1 2
    		D28-250290R Single sliding door 2-step w/o upper rail - right 2790 2500 Mesh Classic 50x50
    1 2
    		DP28-230290L Single sliding door 2-step w/o upper rail -left 2790 2300 Plastic
    Sheet metal     		Classic 50x50
    Premium 70x70
    2 2
    		DP28-230290R Single sliding door 2-step w/o upper rail - right 2790 2300 Plastic
    Sheet metal     		Classic 50x50
    Premium 70x70
    2 2
    View more View less

Downloads

X-Guard Technical

Brochure

Product information

Single sliding doors without rails are the ideal solution where objects higher than the rail need to pass through the opening. The door is a good choice where goods must be moved using an overhead traveling crane or fork lift truck.

Maximum height is 2500 mm and maximum width is 2900 mm. *The maximum width varies depending on the used locking solution.

(Posts, handles and panels are not included in the door package. Opening dimensions may be limited depending on the type of lock chosen.)

View more View less
See the product in Axelent Xperience
Related articles

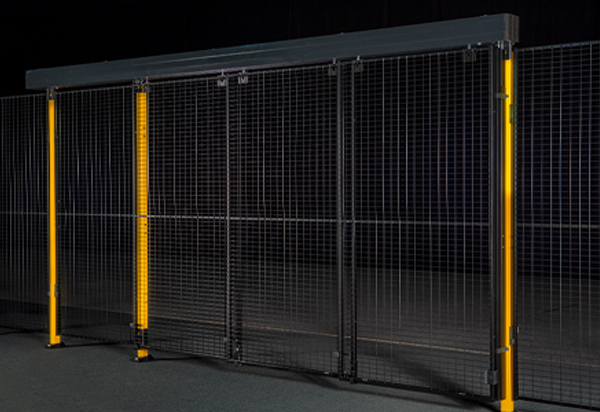

Triple sliding door with 3-step rail – adaptability in case of limited space
