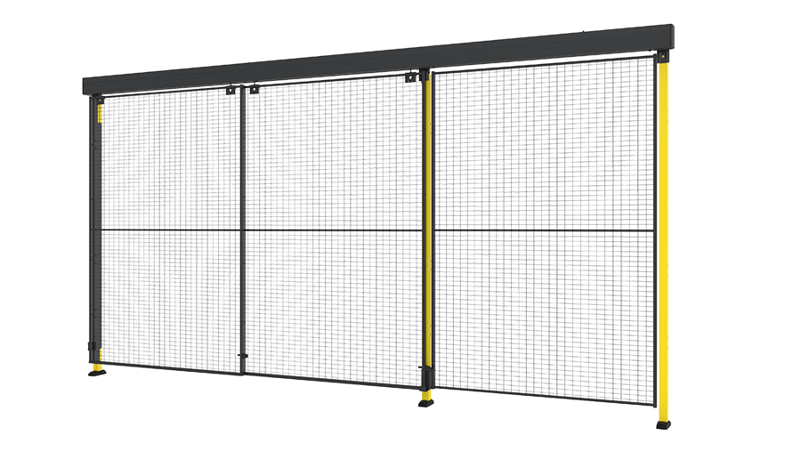

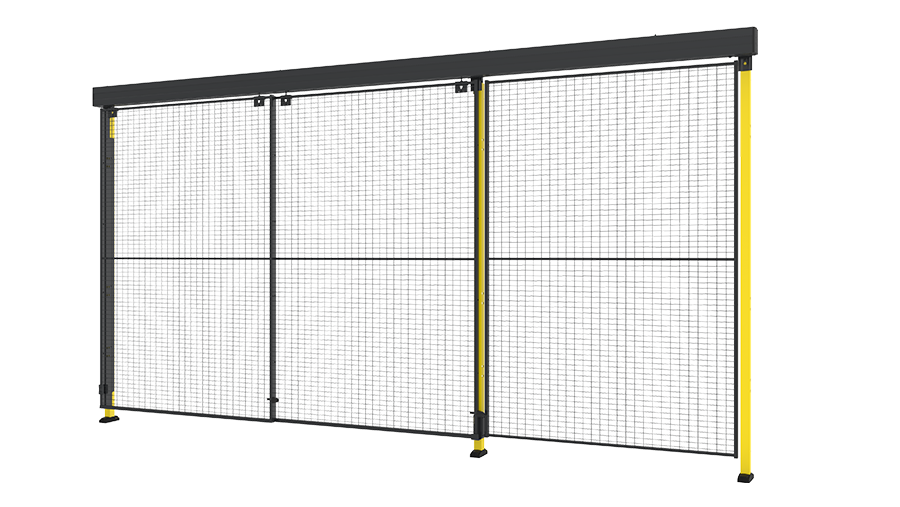

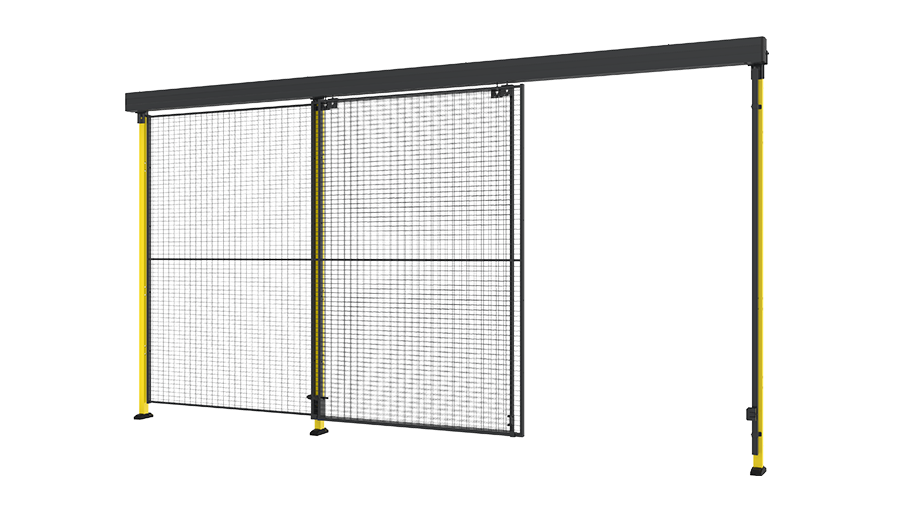

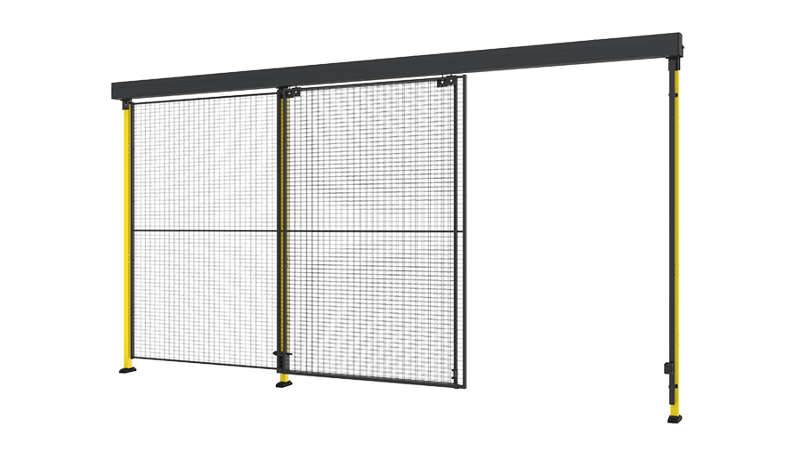

Double sliding door with 2-step rail

A double telescopic sliding door with rails is used where a large opening is required but where space is limited in the sideways direction. The panels overlap each other instead sliding to the side.

Get your quote now

Name *

Phone

State *

Email *

Subject *

Message *

I have taken note of Axelent's data protection policy, which you can read here.

I agree that Axelent will process my personal information to contact me.

Design safety solutions

Design your safety solutions in our drawing tool, Safety Design

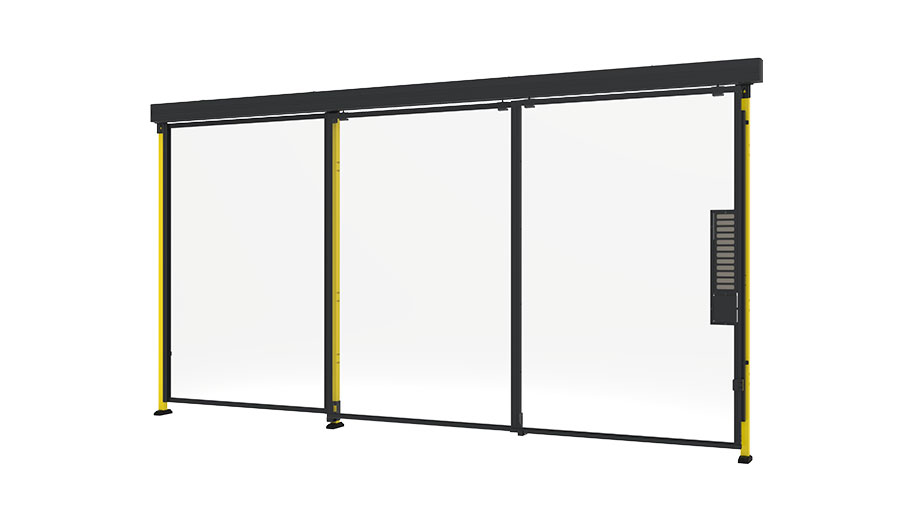

double sliding door machine guarding with plastic panels closed

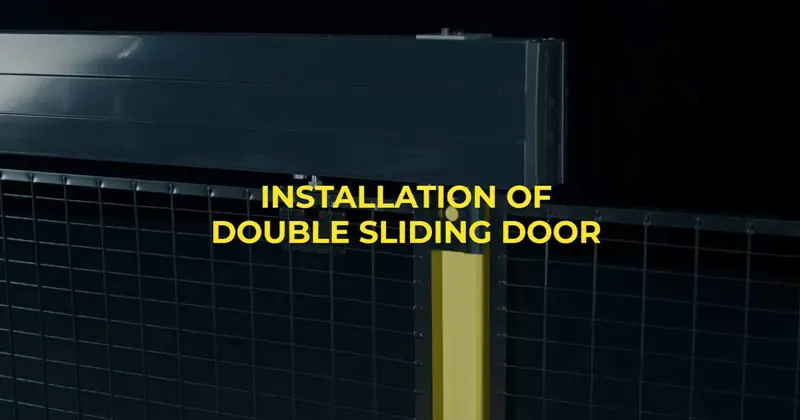

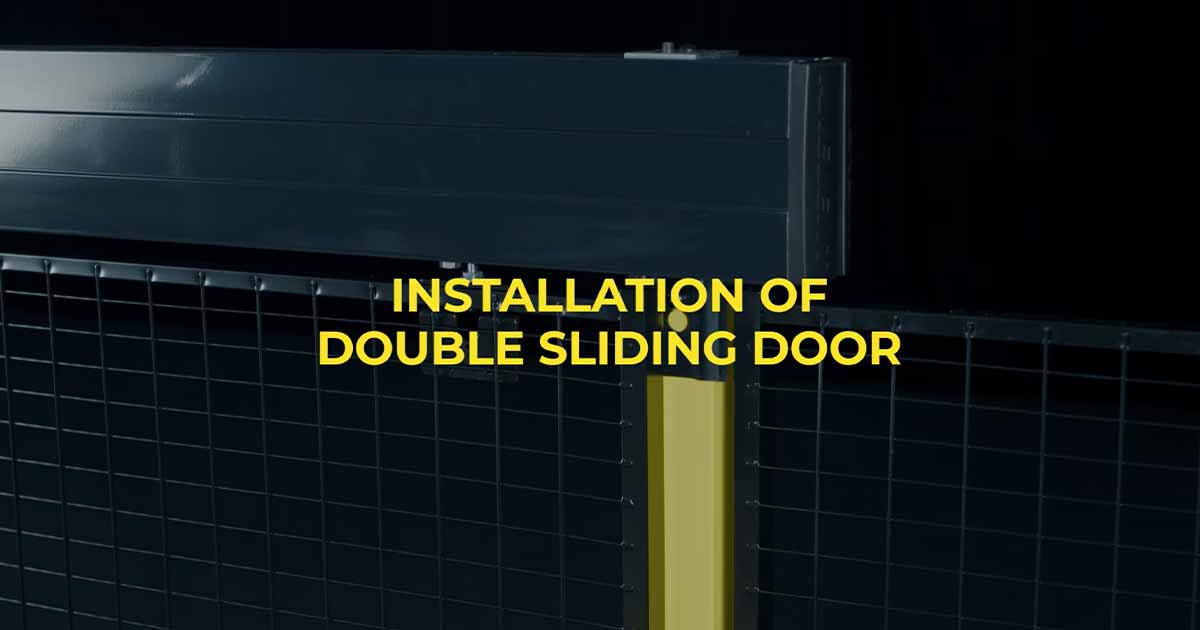

Instruction video on how to assemble a Double sliding door with 2-step rail

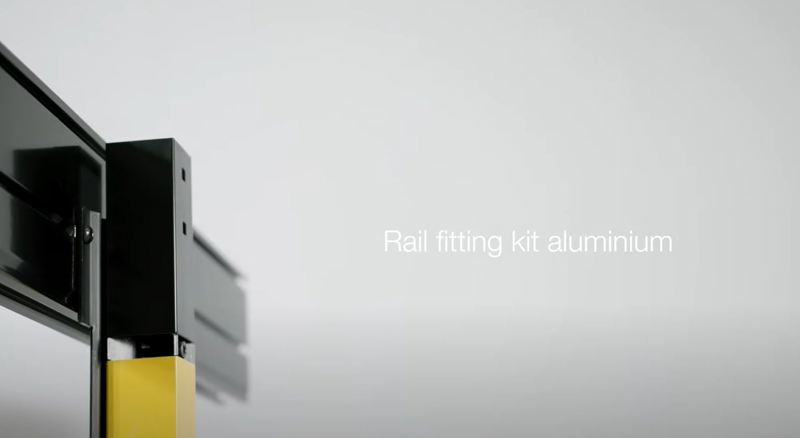

axelent mounting instructions rail fitting kit aluminium

Select CAD Format

1/5

2/5

3/5

4/5

5/5

Models

Height 2000 mm

4 Articles

Article	Description	Max Opening Width (mm)	Max Height (mm)	Panel	Fits Posts
D23-200300R	Double sliding door with 2-step rail	2880	2000	Mesh	Classic 50x50	1 2
D23-200300L	Double sliding door with 2-step rail	2880	2000	Mesh	Classic 50x50	2
D43-200300L	Double sliding door with 2-step rail	2900	2000	Mesh	Premium 70x70	2
D43-200300R	Double sliding door with 2-step rail	2900	2000	Mesh	Premium 70x70	2

View more View less

Height 2300 mm

4 Articles

Article	Description	Max Opening Width (mm)	Max Height (mm)	Panel	Fits Posts
D23-230300R	Double sliding door with 2-step rail	2880	2300	Mesh Plastic Sheet metal	Classic 50x50	2 2
D23-230300L	Double sliding door with 2-step rail	2880	2300	Mesh Plastic Sheet metal	Classic 50x50	3 2
D43-230300L	Double sliding door with 2-step rail	2900	2300	Mesh Plastic Sheet metal	Premium 70x70	5 2
D43-230300R	Double sliding door with 2-step rail	2900	2300	Mesh Plastic Sheet metal	Premium 70x70	5 2

View more View less

Height 2500 mm

4 Articles

Article	Description	Max Opening Width (mm)	Max Height (mm)	Panel	Fits Posts
D23-250300L	Double sliding door with 2-step rail	2880	2500	Mesh	Classic 50x50	2
D23-250300R	Double sliding door with 2-step rail	2880	2500	Mesh	Classic 50x50	2
D43-250300L	Double sliding door with 2-step rail	2900	2500	Mesh	Premium 70x70	2
D43-250300R	Double sliding door with 2-step rail	2900	2500	Mesh	Premium 70x70	2

View more View less

Downloads

X-Guard Technical

Brochure

Product information

A double telescopic sliding door with rails is used where a large opening is required but where space is limited in the sideways direction. The panels overlap each other instead sliding to the side.

Maximum height is 2500 mm and maximum width is 2x1500 mm. *The maximum width varies depending on the used locking solution.

(Posts, handles and panels are not included in the door package. Opening dimensions may be limited depending on the type of lock chosen.)

View more View less
