Combined hinged- and sliding door

3D

The combined hinged- and sliding door offers 3000 or 6000 mm wide opening in compact way. All the advantages of both door types are merged into one. The door has folding panels on wheels, which means that you quick and easily can open the door by sliding the door panels together and then folding...

Read more
Get your quote now
Design safety solutions

Design your safety solutions in our drawing tool, Safety Design

Models

CAD Article Description Max Opening Width (mm) Min Height (mm) Max Height (mm) Panel Fits Posts

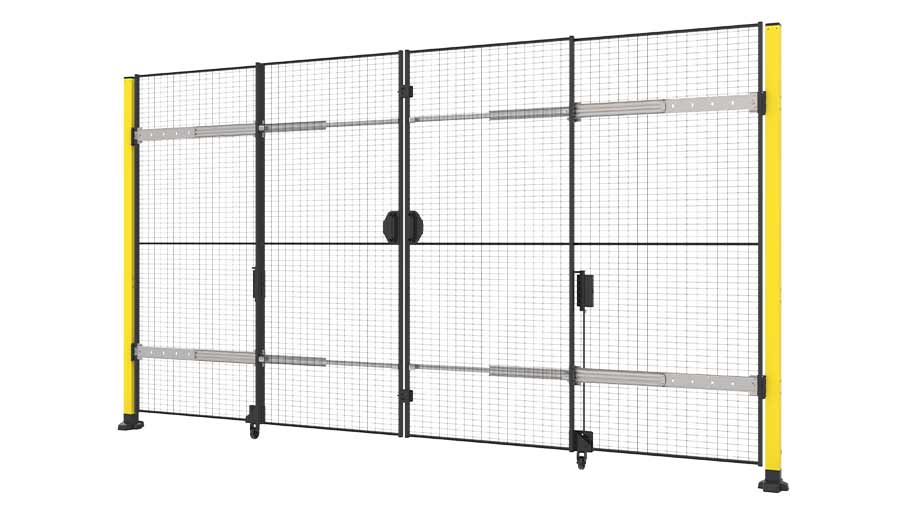

D57-XXX400A Combined hinged and sliding door, center lock 3900 2000 2500 Mesh Premium 70x70
1 3
D57-XXX400B Combined hinged and sliding door, center lock 3900 2755 3055 Mesh Premium 70x70
1 2

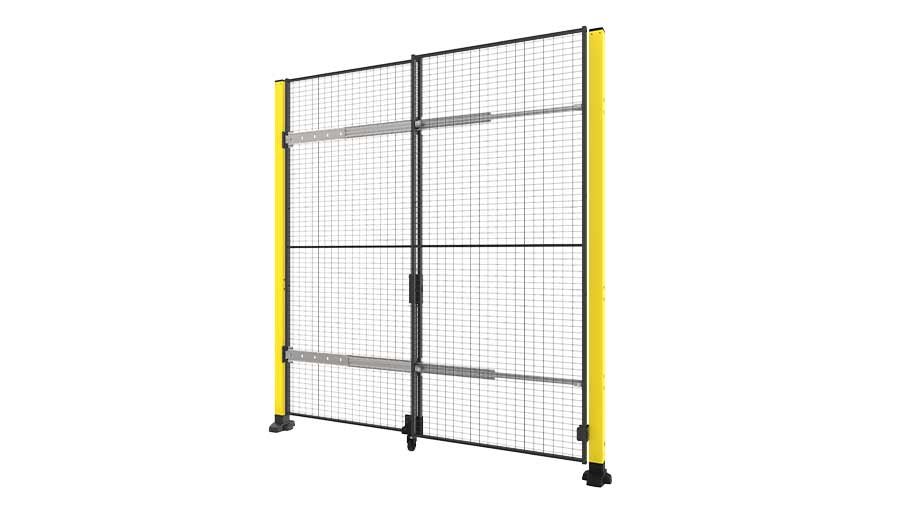

D56-XXX200A Combined hinged and sliding door 1900 2000 2500 Mesh Premium 70x70
3 2

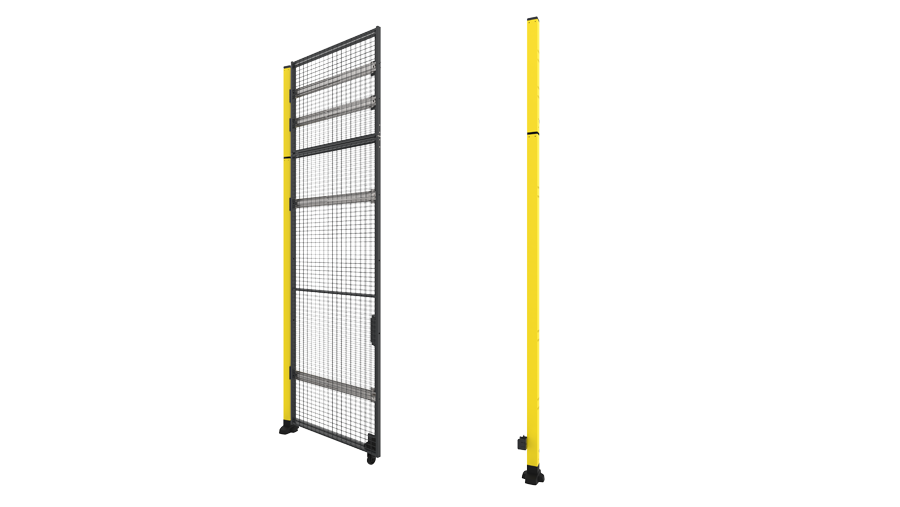

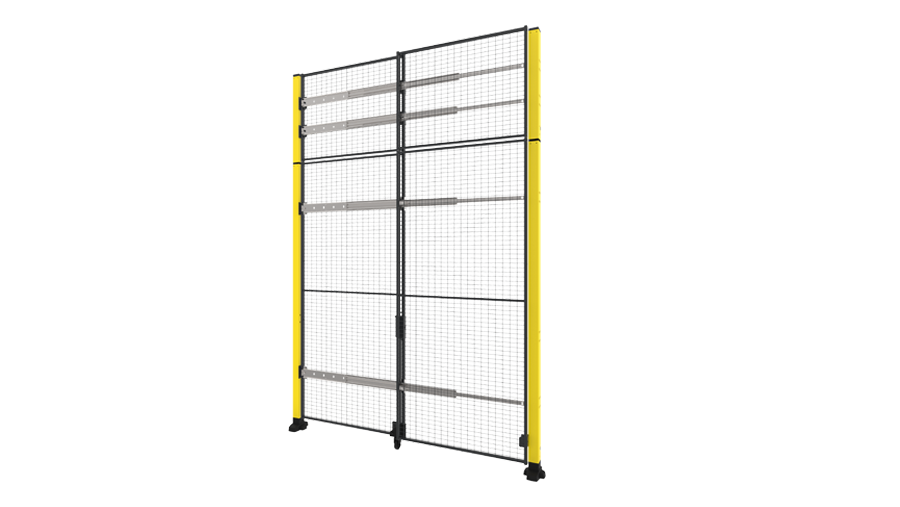

D56-XXX200B Combined hinged and sliding door 1900 2755 3055 Mesh Premium 70x70
3 2

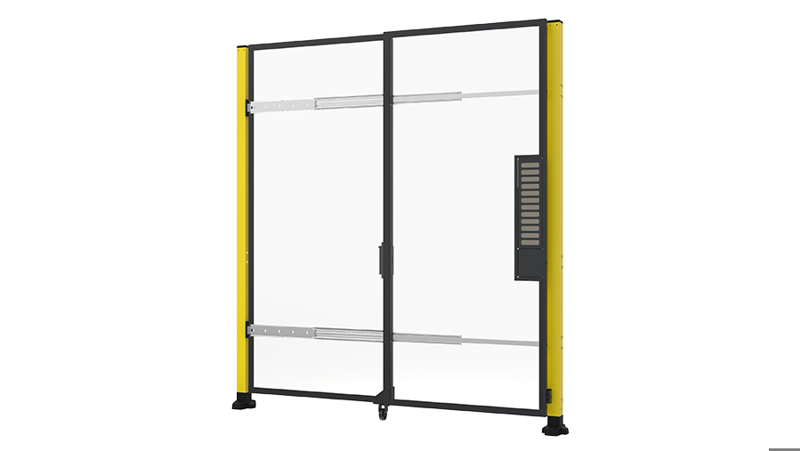

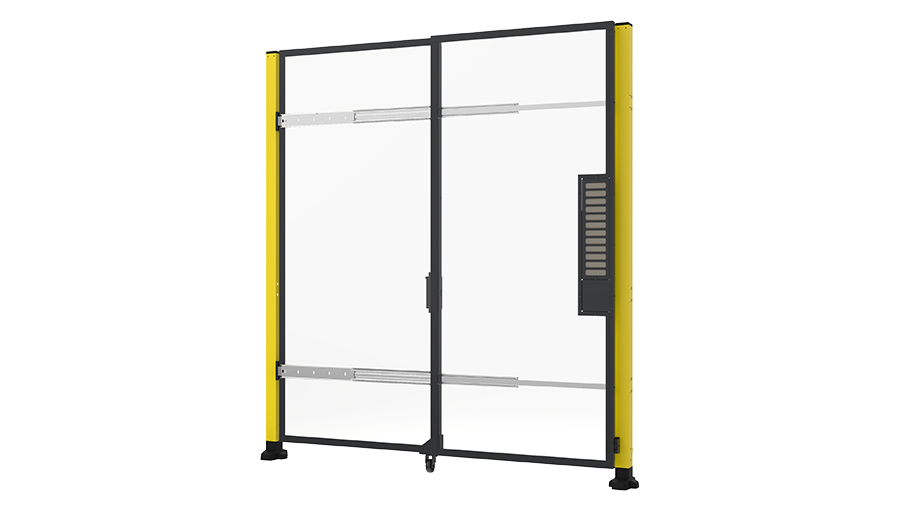

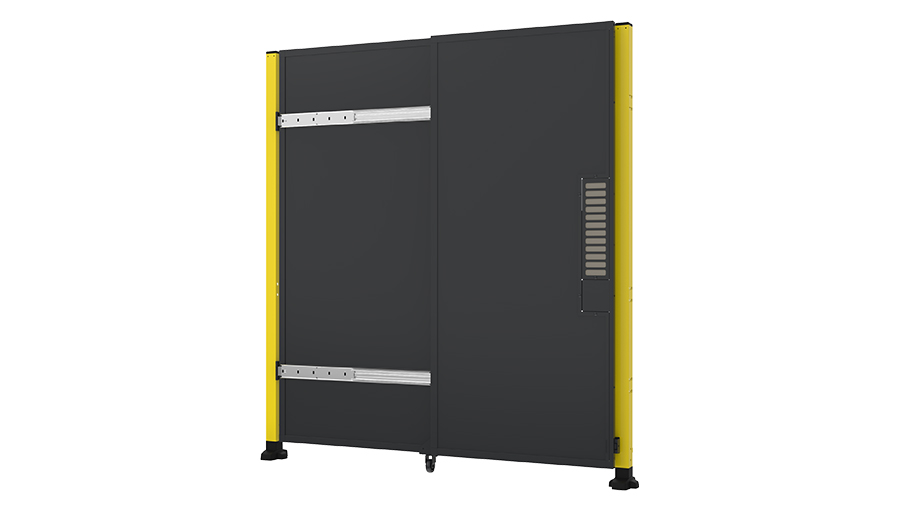

DP56-XXX200A Combined hinged and sliding door 1900 2300 Plastic
Sheet metal 		Premium 70x70
5 2
DP57-XXX400A Combined hinged and sliding door, center lock 3900 2300 Plastic
Sheet metal 		Premium 70x70
3 2
D56-XXX300A Combined hinged and sliding door 2900 2000 2500 Mesh Premium 70x70
1 1
D57-XXX600A Combined hinge and sliding door with centre lock 5900 2000 2500 Mesh Premium 70x70
1 1
View more View less

Downloads

B00-039

Technical drawing

X-Guard Technical

Brochure

Product information

The combined hinged- and sliding door offers 3000 or 6000 mm wide opening in compact way. All the advantages of both door types are merged into one. The door has folding panels on wheels, which means that you quick and easily can open the door by sliding the door panels together and then folding them down.





Maximum height is 2300 or 3055 mm and maximum opening is 3000 or 6000 mm.
