Pedestrian barriers

Pedestrian with impact high

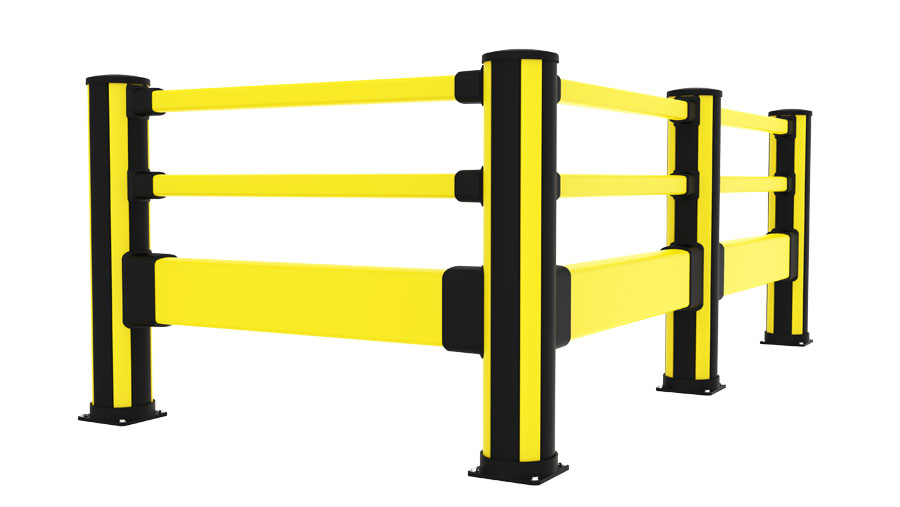

Use the X-Protect Pedestrian + Impact high barrier configuration to protect walkways from medium duty vehicles where there is a reduced risk of ground level impacts. It is also possible to combine with a pedestrian gate. The pedestrian gate is self closing, provided with a universal handle and wi...

Get your quote now
Design safety solutions

Design your safety solutions in our drawing tool, Safety Design

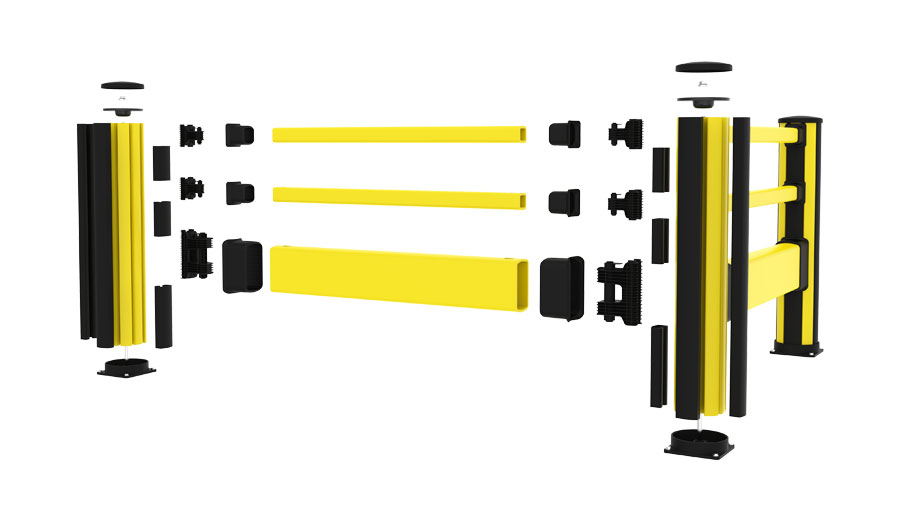

Models

  • Posts

    6 Articles
    CAD Article Description Height (mm) Color
    BCE0-116-I1P2 Pedestrian + Impact High end 1160 Zinc Yellow (RAL 1018)
    Graphite Black (RAL 9011)
    1
    BCC1-116-I1P2 Pedestrian + Impact High corner 1160 Zinc Yellow (RAL 1018)
    BCC0-116-I1P2 Pedestrian + Impact High corner 1160 Zinc Yellow (RAL 1018)
    Graphite Black (RAL 9011)
    1
    BCM1-116-I1P2 Pedestrian + Impact High mid 1160 Zinc Yellow (RAL 1018)
    BCM0-116-I1P2 Pedestrian + Impact High mid 1160 Zinc Yellow (RAL 1018)
    Graphite Black (RAL 9011)
    1
    BCE1-116-I1P2 Pedestrian + Impact High end 1160 Zinc Yellow (RAL 1018)
  • Impact rails

    7 Articles
    CAD Article Description Length (mm) CC (mm) Color
    RCI1-027-0050 Impact rail 270 500 Zinc Yellow (RAL 1018)
    RCI1-277-0300 Impact rail 2770 3000 Zinc Yellow (RAL 1018)
    RCI1-227-0250 Impact rail 2270 2500 Zinc Yellow (RAL 1018)
    RCI1-177-0200 Impact rail 1770 2000 Zinc Yellow (RAL 1018)
    RCI1-127-0150 Impact rail 1270 1500 Zinc Yellow (RAL 1018)
    RCI1-077-0100 Impact rail 770 1000 Zinc Yellow (RAL 1018)
    RCI1-047-0070 Impact rail 470 700 Zinc Yellow (RAL 1018)
  • Hand rails

    5 Articles
    CAD Article Description Length (mm) CC (mm) Color
    RCP1-027-0050 Hand rail 270 500 Zinc Yellow (RAL 1018)
    RCP1-047-0070 Hand rail 470 700 Zinc Yellow (RAL 1018)
    RCP1-077-0100 Hand rail 770 1000 Zinc Yellow (RAL 1018)
    RCP1-127-0150 Hand rail 1270 1500 Zinc Yellow (RAL 1018)
    RCP1-177-0200 Hand rail 1770 2000 Zinc Yellow (RAL 1018)
  • Gate

    1 Articles
    CAD Article Description
    GCP8-069-0121 Pedestrian gate, 690-1210 mm
    2

Downloads

Pedestrian with impact high

Product information

X-Protect Pedestrian impact high

Assembly instruction

X-Protect | Impact protection

Brochure

X-Protect Technical | Impact protection

Brochure

Product information

Use the X-Protect Pedestrian + Impact high barrier configuration to protect walkways from medium duty vehicles where there is a reduced risk of ground level impacts. It is also possible to combine with a pedestrian gate. The pedestrian gate is self closing, provided with a universal handle and width is adjustable from 690-1210 mm.

X-Protect is a unique approach to safety barriers. Unrivalled modularity, using only a few system components and damping that is built in to create a barrier system that changes with your work place. X-Protect allows rapid transformation, repair or replacement of existing barriers and bespoke configurations are limitless.



Impact test results
Area of impact Load Equivalent to 90° Deflection Force to fixings
Centre of barrier C - C as below
2000mm 8000 J 2500 kg
9.1 km/h
5000 kg
6.4 km/h
450mm 17 kN
Posts
End post 1850 J 2500 kg
4.3 km/h
5000 kg
3 km/h
NA * 11.6 kN
Mid post 2450 J 2500 kg
5 km/h
5000 kg
3.5 km/h
NA * 12.7 kN

 * Deflection of posts is equivalent or less than that of the rail/s and is not considered to be critical for product selection. Performance is tested at height of the lowest rail. The post will perform better for lower strikes and deflection.
